PASSENGER SIDE: Exploded View

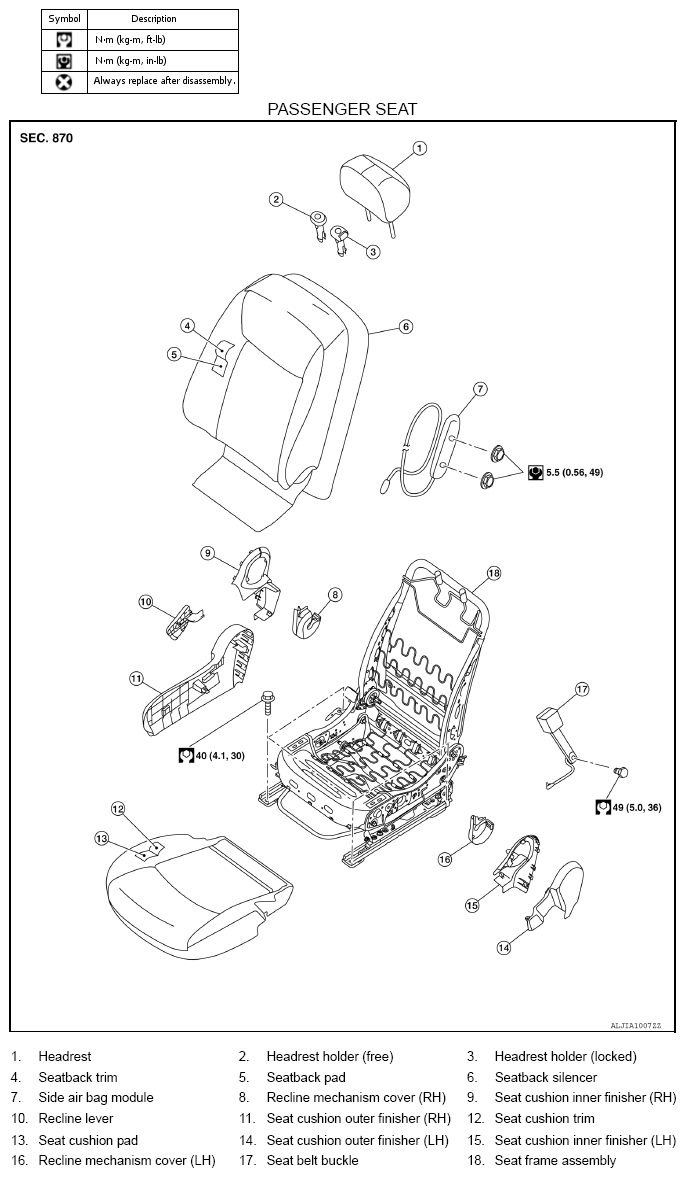

Fig 1: Exploded View Of Front Seat (Passenger Seat) With Torque Specifications

G08990678

Courtesy of NISSAN NORTH AMERICA, INC.
