Evaporative Emission Line Drawing

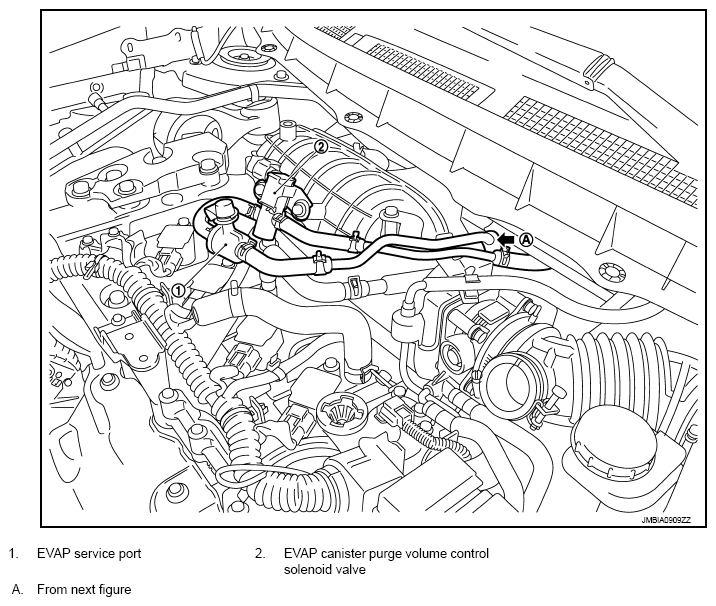

Fig 1: Identifying EVAP Service Port And EVAP Canister Purge Volume Control Solenoid Valve
G08986780Courtesy of NISSAN NORTH AMERICA, INC.

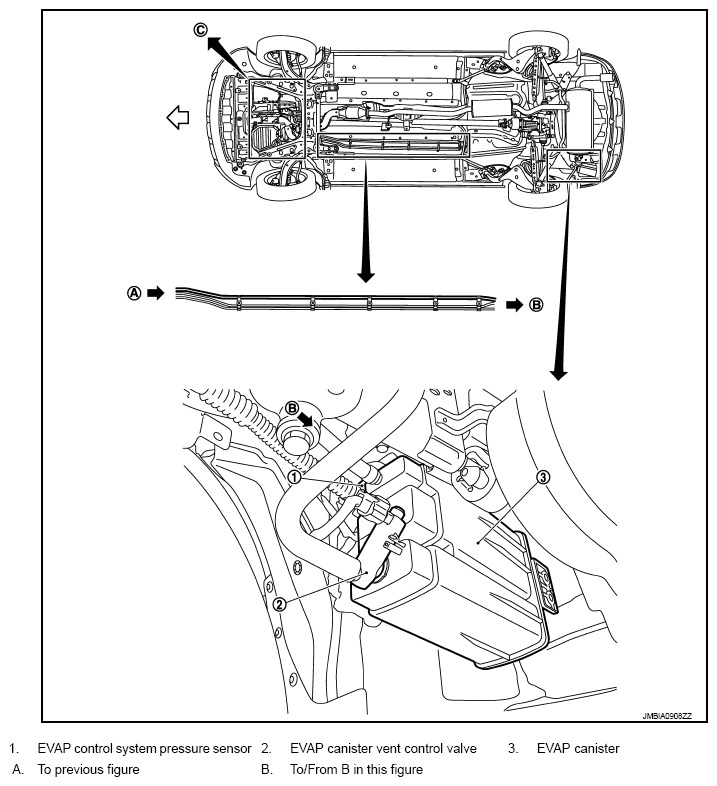

Fig 2: Identifying EVAP Control System Pressure Sensor, EVAP Canister Vent Control Valve And EVAP Canister
G08986781Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
