Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

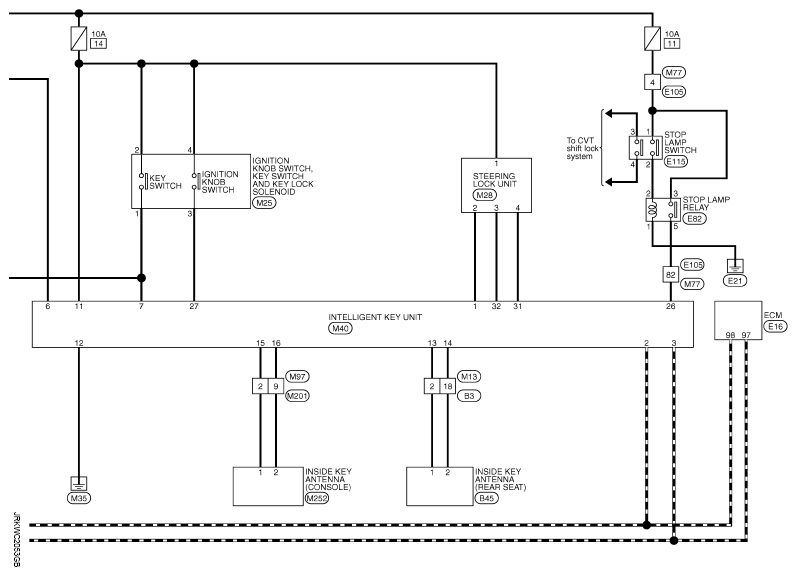

Fig 1: Intelligent Key System/Engine Start Function Wiring Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

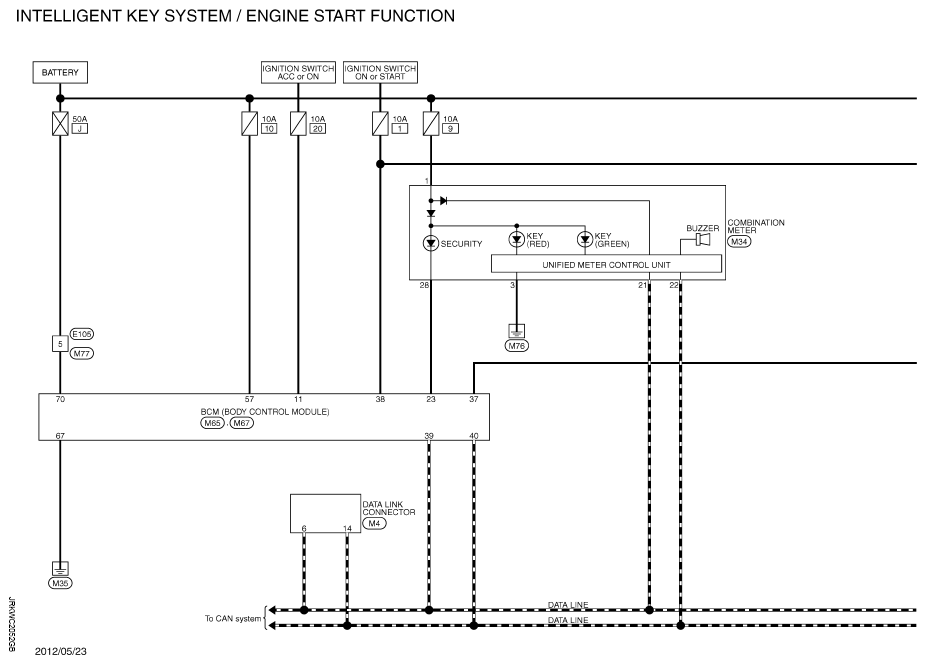

Fig 2: Intelligent Key System/Engine Start Function Wiring Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
