Component Parts Location

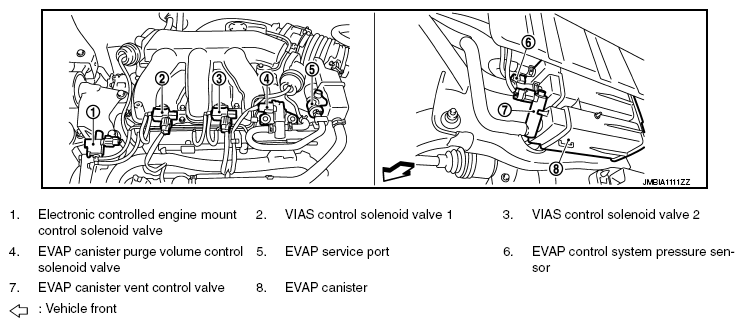

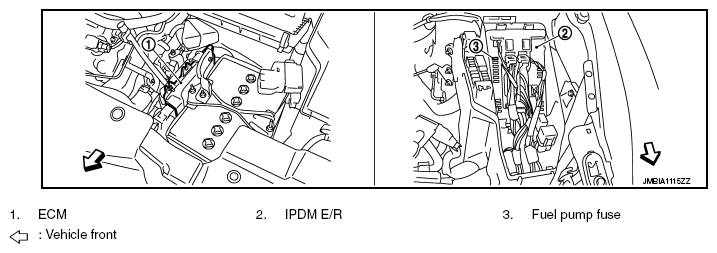

Fig 1: Identifying Electronic Controlled Engine Mount Component Parts Location (1 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

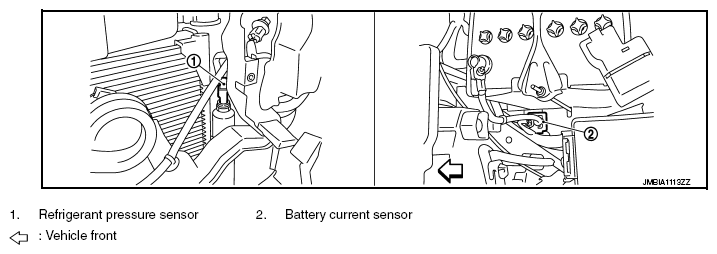

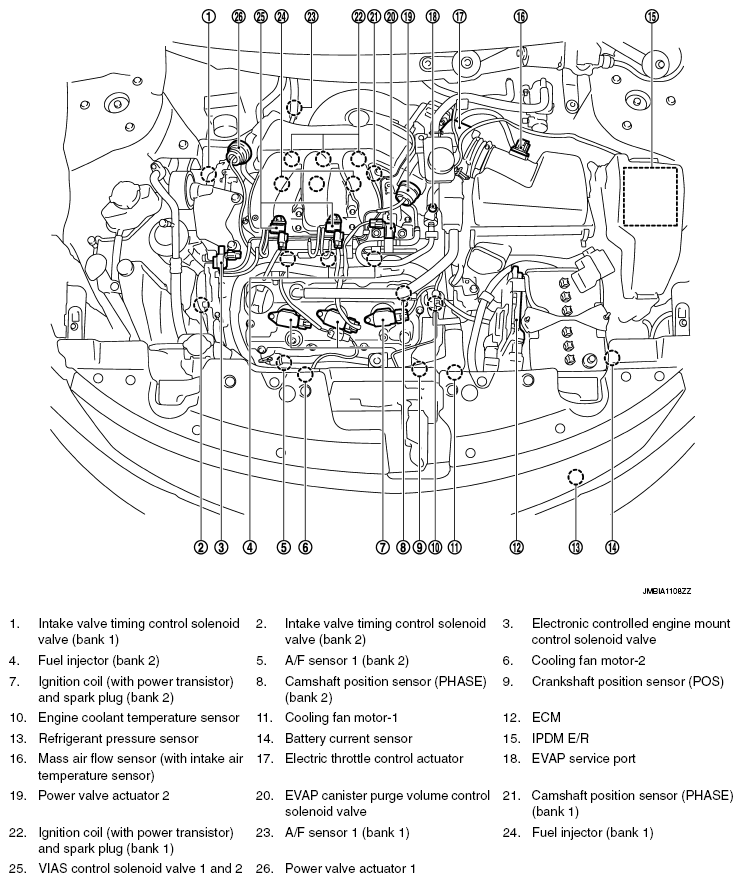

Fig 2: Identifying Electronic Controlled Engine Mount Component Parts Location (2 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

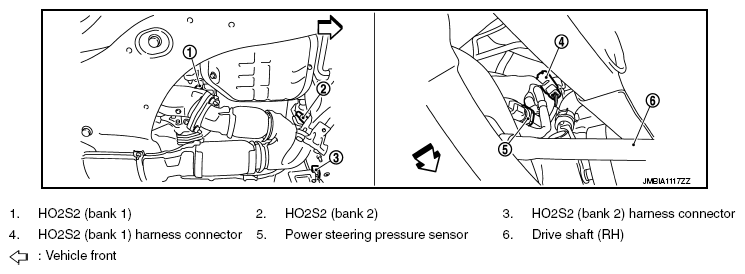

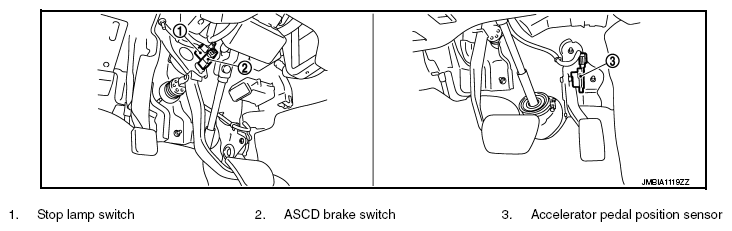

Fig 3: Identifying Electronic Controlled Engine Mount Component Parts Location (3 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

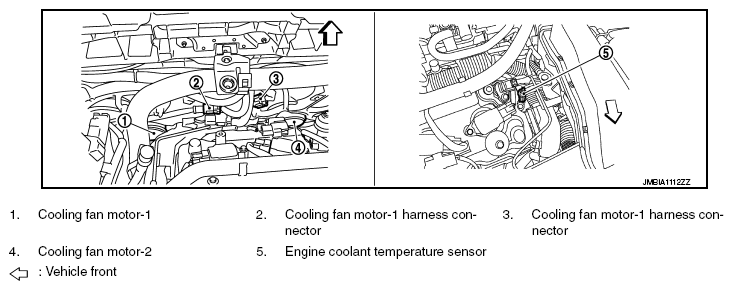

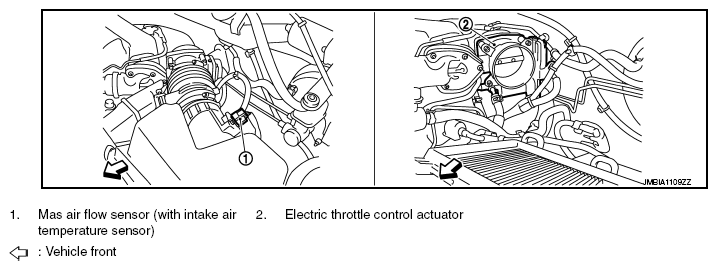

Fig 4: Identifying Electronic Controlled Engine Mount Component Parts Location (4 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

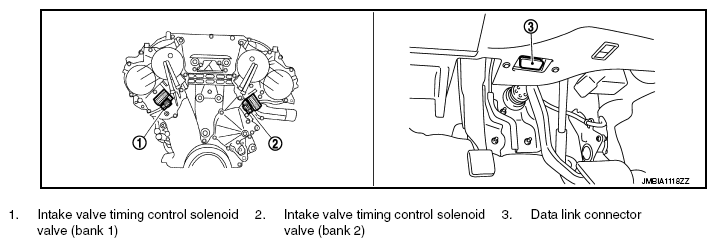

Fig 5: Identifying Electronic Controlled Engine Mount Component Parts Location (5 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Electronic Controlled Engine Mount Component Parts Location (6 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Electronic Controlled Engine Mount Component Parts Location (7 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Identifying Electronic Controlled Engine Mount Component Parts Location (8 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: Identifying Electronic Controlled Engine Mount Component Parts Location (9 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Identifying Electronic Controlled Engine Mount Component Parts Location (10 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Electronic Controlled Engine Mount Component Parts Location (11 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Identifying Electronic Controlled Engine Mount Component Parts Location (12 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Identifying Electronic Controlled Engine Mount Component Parts Location (13 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 14: Identifying Electronic Controlled Engine Mount Component Parts Location (14 Of 14)

Courtesy of NISSAN NORTH AMERICA, INC.
