IGNITION TIMING: Special Repair Requirement

  1. CHECK IGNITION TIMING

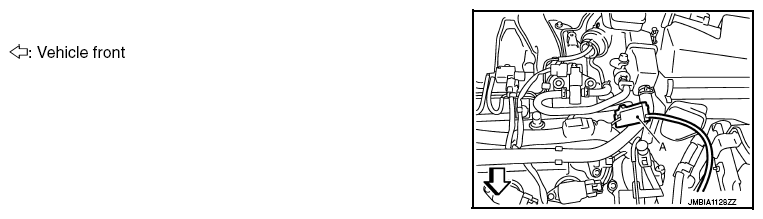

  1. Attach timing light to loop wires as shown in the figure below.
    • Timing light (A)
    Fig 1: Connecting Timing Light
    G08955069Courtesy of NISSAN NORTH AMERICA, INC.
  2. Check ignition timing.

    : INSPECTION END

    Fig 2: Checking Ignition Timing Using Timing Indicator
    G05865153Courtesy of NISSAN NORTH AMERICA, INC.
