Quick Connector
Quick Connector
CAUTION:
After connecting fuel tube quick connectors, check quick connectors are secure.
Ensure that connector and resin tube never contact any adjacent parts.

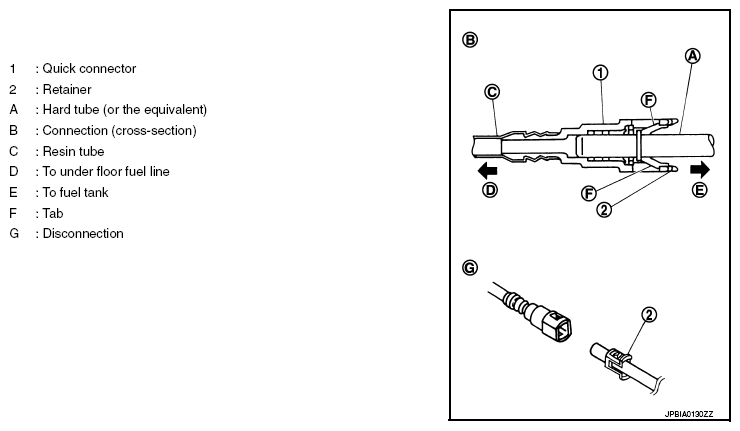

Fig 1: Identifying Quick Connector Connections
Courtesy of NISSAN NORTH AMERICA, INC.
