Exploded View
>>
Disassembly
Exploded View: Disassembly

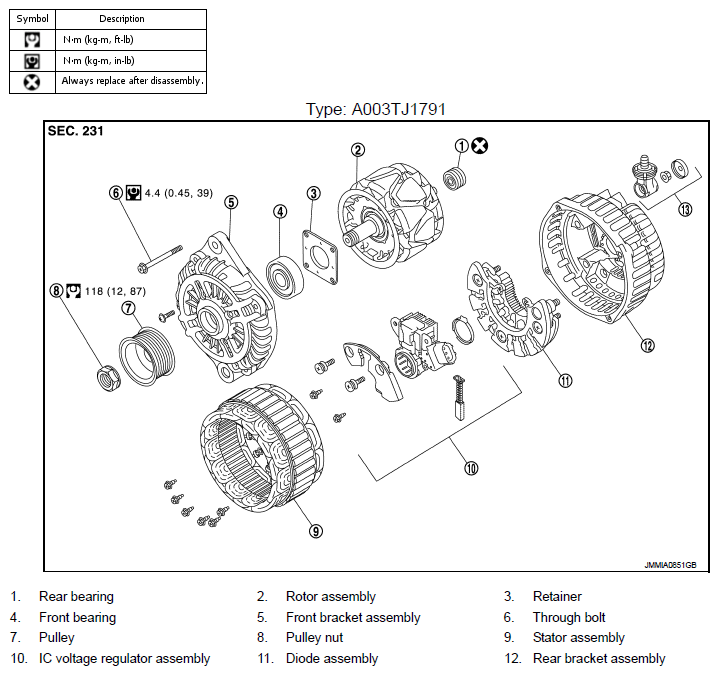

Fig 1: Disassembled View Of Alternator With Torque Specifications (Type A003TJ1791)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
