Nissan-Datsun
>>
2013
>>
Juke SL, FWD, Standard Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Exhaust System
>>
Removal And Installation
>>
Exhaust System
>>
Exploded View
Exploded View

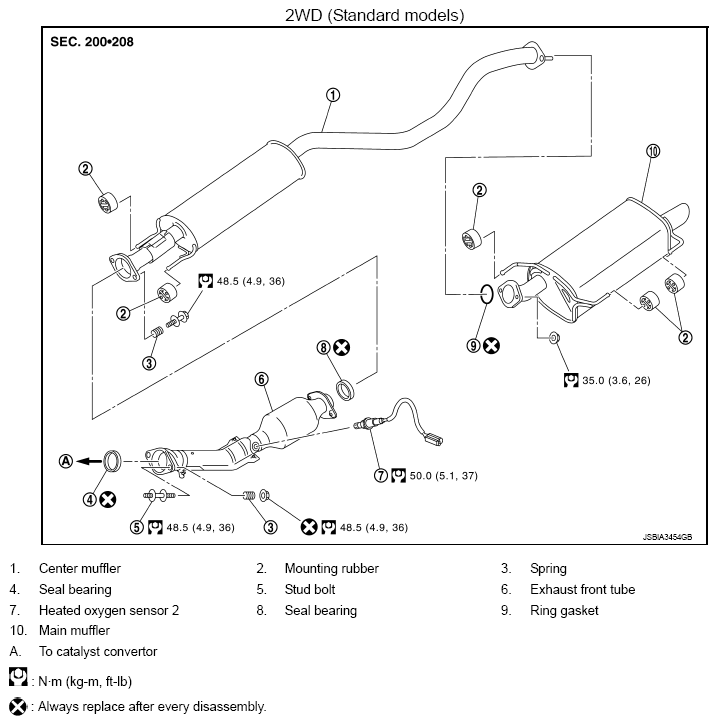

Fig 1: Exploded View Of Exhaust System With Torque Specifications (2WD - Standard Models)
Courtesy of NISSAN NORTH AMERICA, INC.

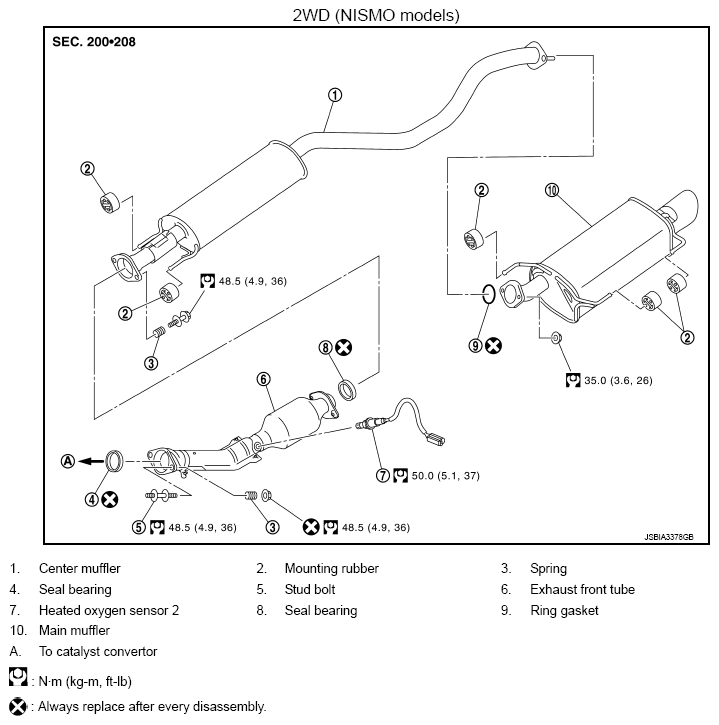

Fig 2: Exploded View Of Exhaust System With Torque Specifications (2WD - NISMO Models)
Courtesy of NISSAN NORTH AMERICA, INC.

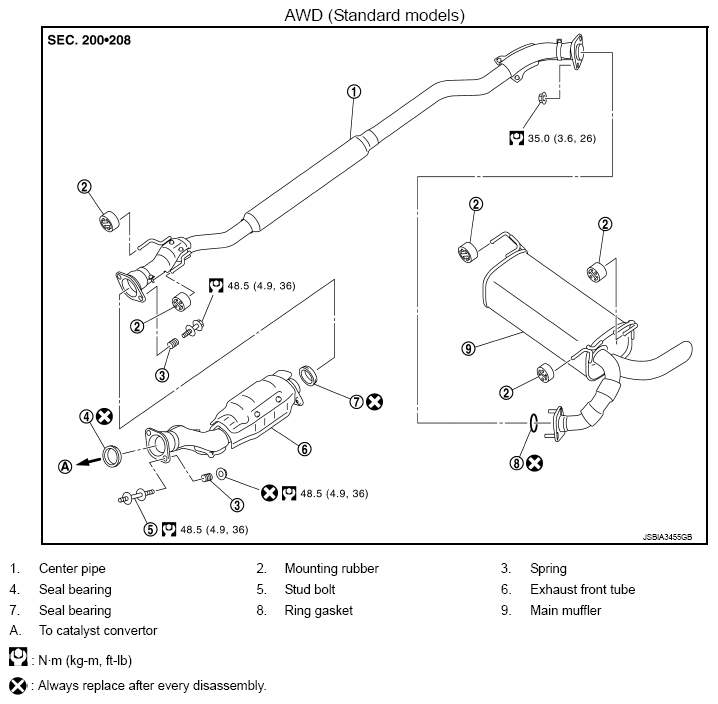

Fig 3: Exploded View Of Exhaust System With Torque Specifications (AWD - Standard Models)
Courtesy of NISSAN NORTH AMERICA, INC.

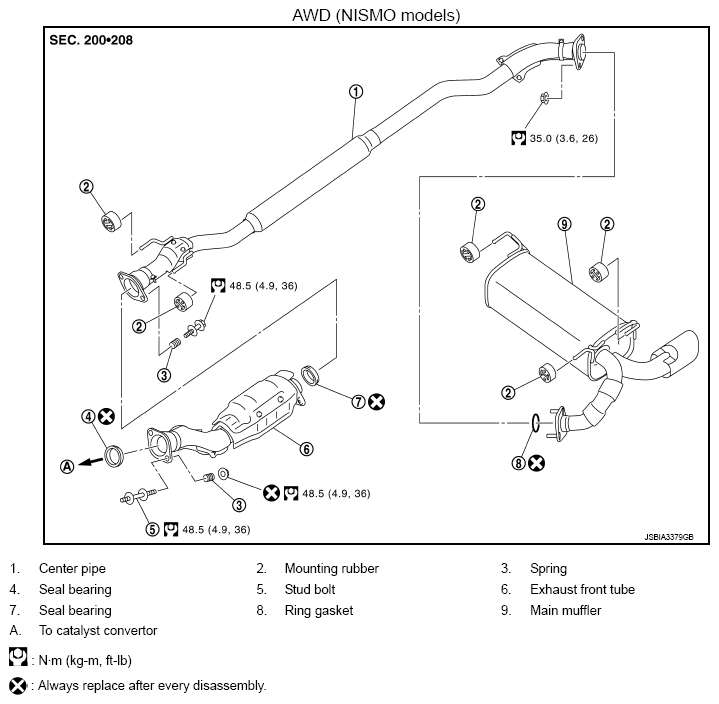

Fig 4: Exploded View Of Exhaust System With Torque Specifications (AWD - NISMO Models)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
