Security Control System: Wiring Diagram

WARNING: This page is about a different car, the 2011 Nissan Juke. However, it is still accessible from the selected car via links, so may be relevant.

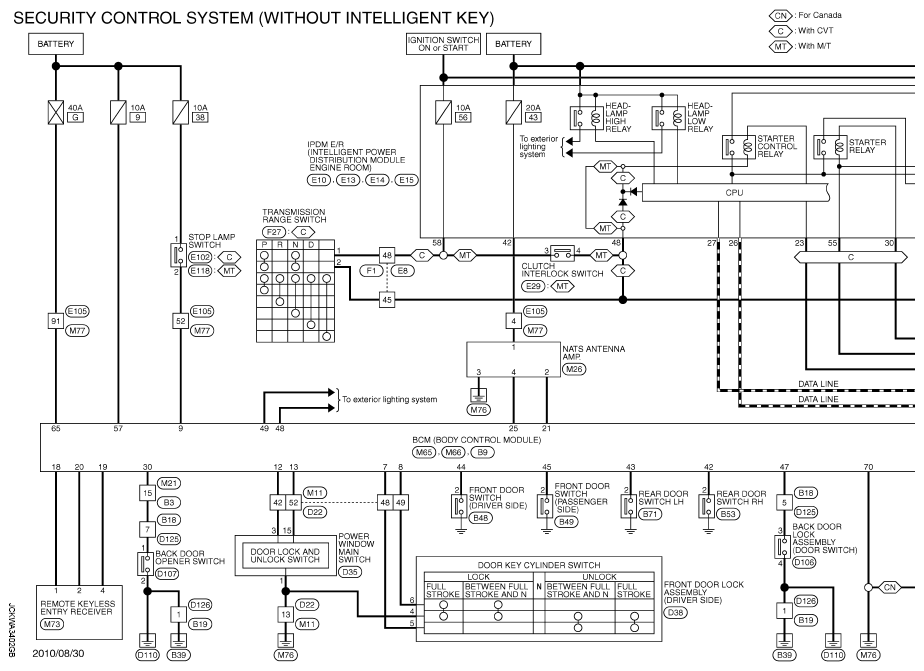

Fig 1: Security Control System (Without Intelligent Key System) Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

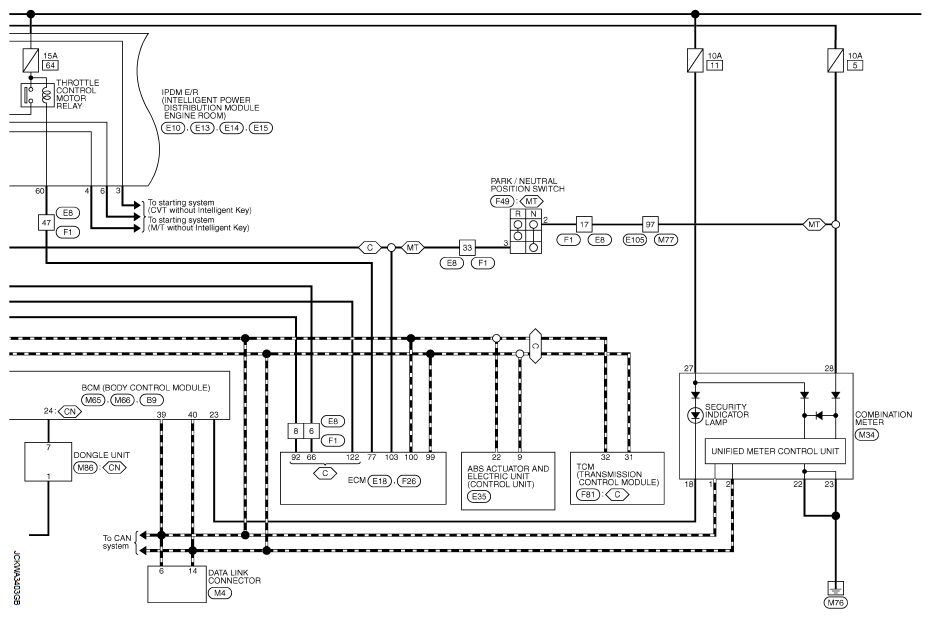

Fig 2: Security Control System (Without Intelligent Key System) Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Security Control System (Without Intelligent Key System) Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

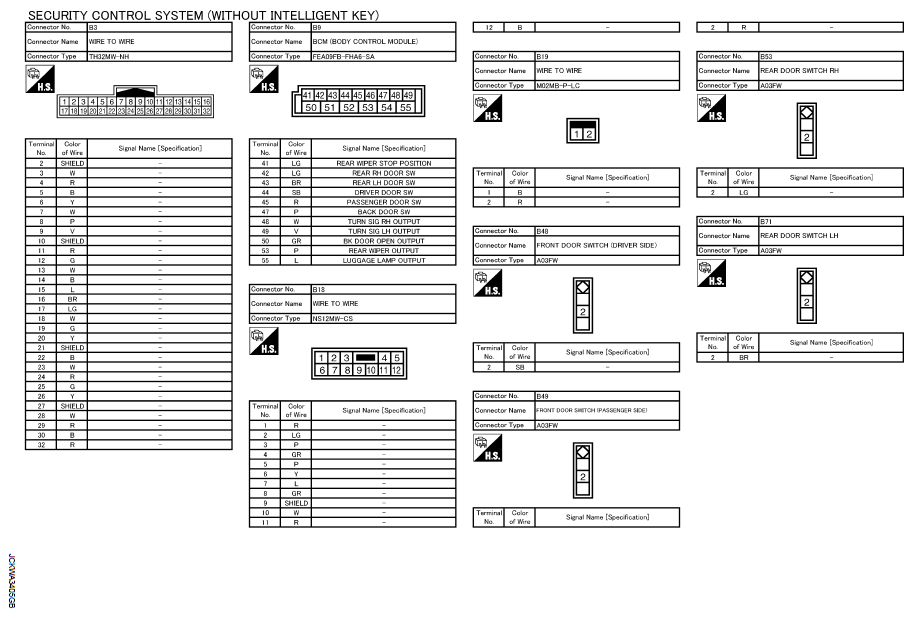

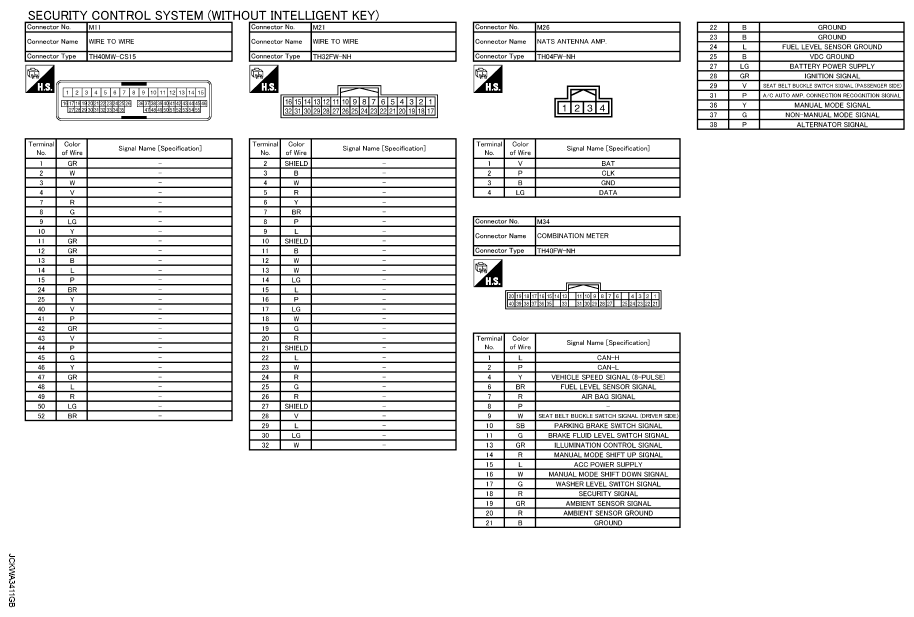

Fig 4: Security Control System (Without Intelligent Key System) Connector Terminals Reference Chart (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

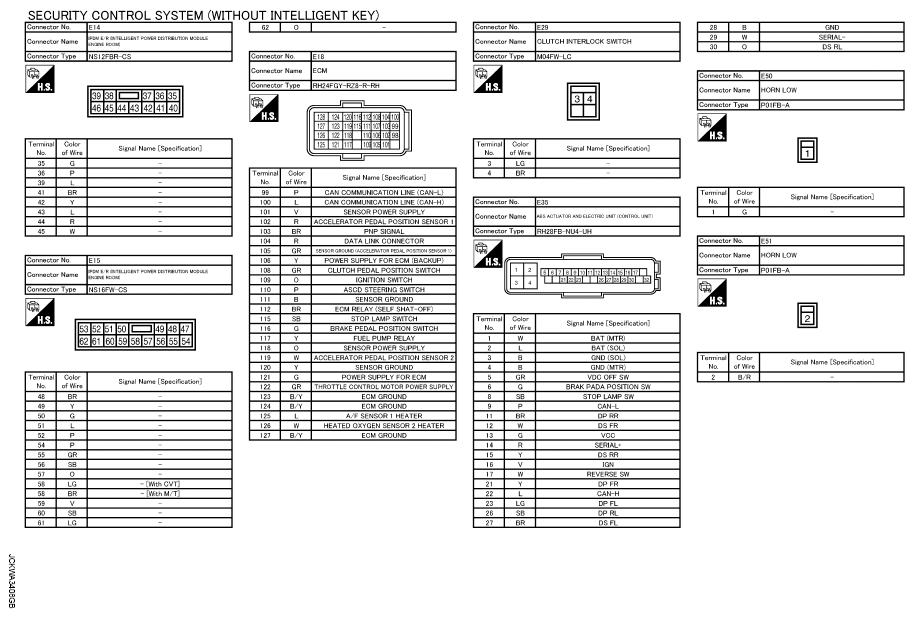

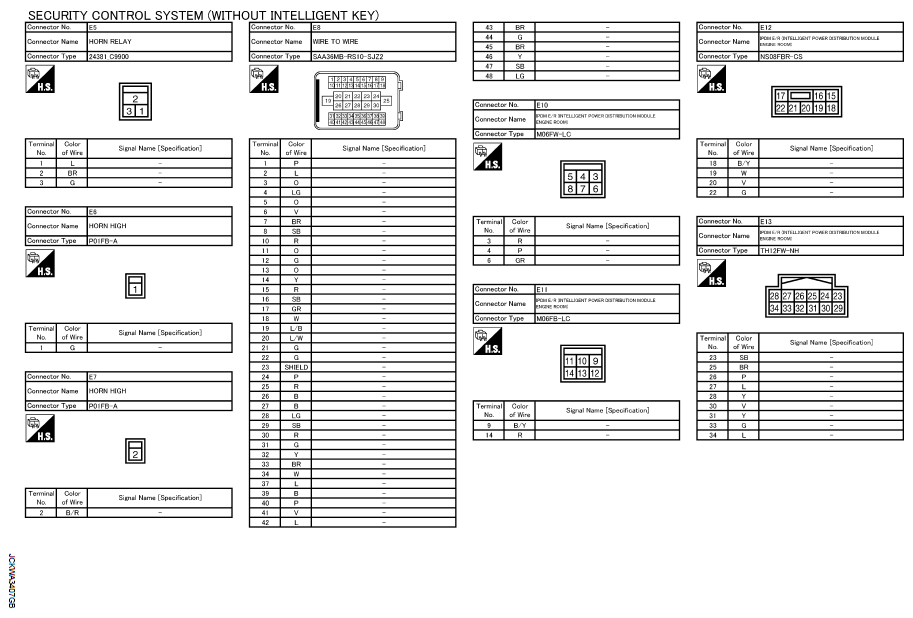

Fig 5: Security Control System (Without Intelligent Key System) Connector Terminals Reference Chart (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

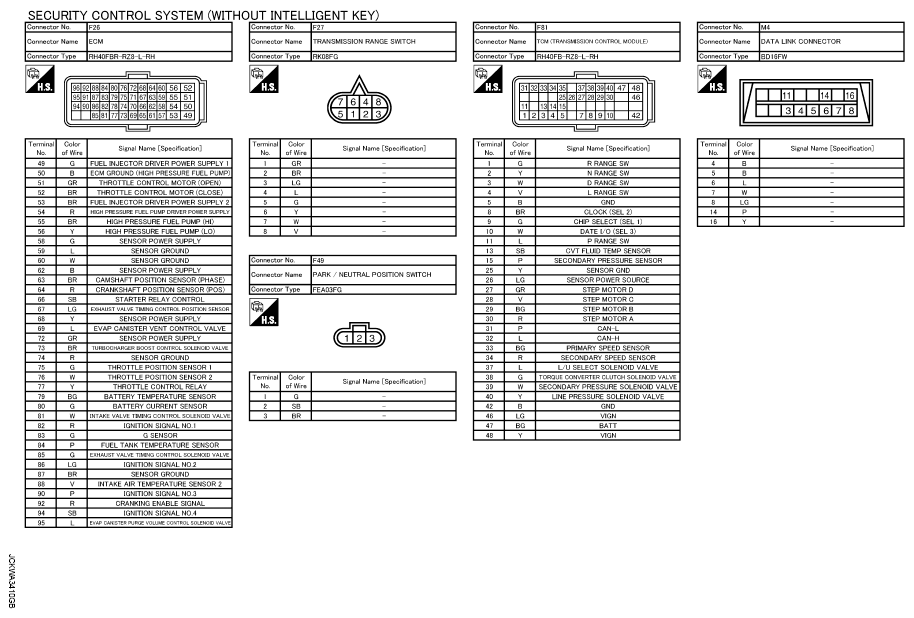

Fig 6: Security Control System (Without Intelligent Key System) Connector Terminals Reference Chart (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

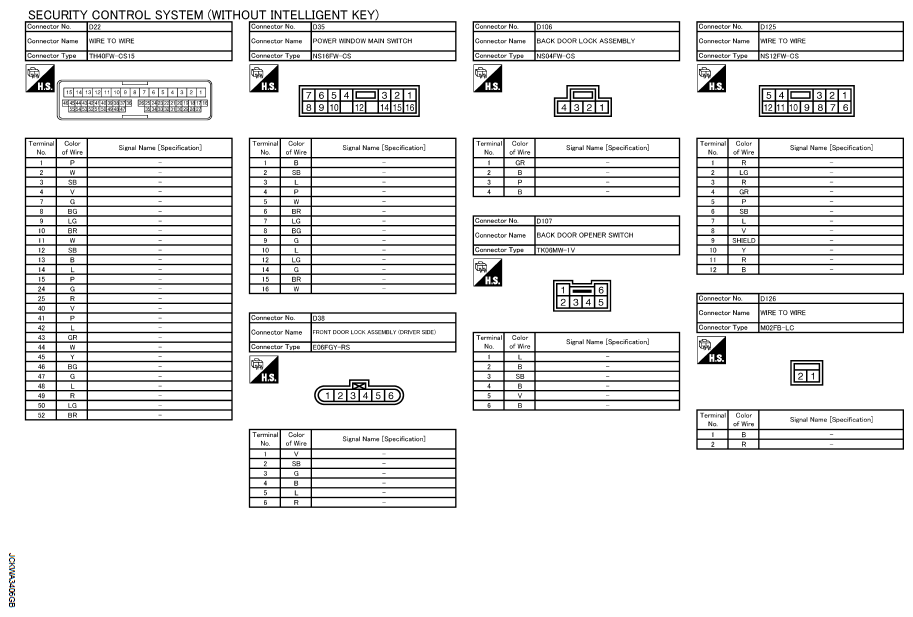

Fig 7: Security Control System (Without Intelligent Key System) Connector Terminals Reference Chart (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

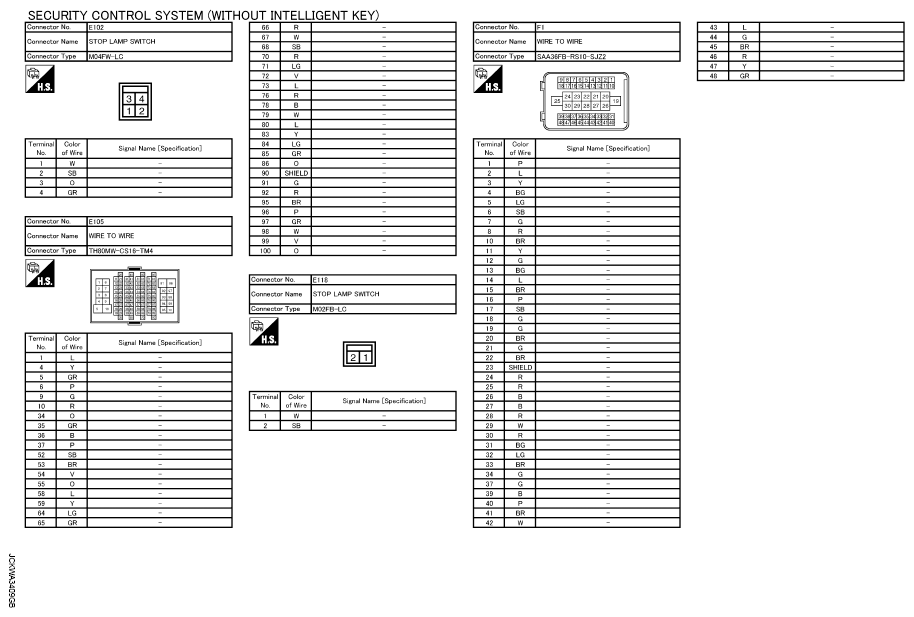

Fig 8: Security Control System (Without Intelligent Key System) Connector Terminals Reference Chart (5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

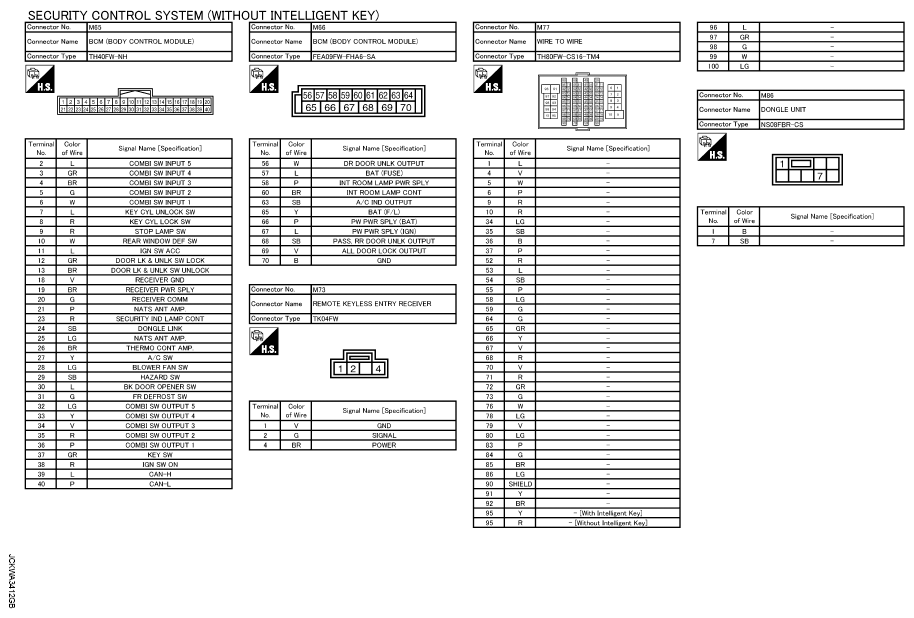

Fig 9: Security Control System (Without Intelligent Key System) Connector Terminals Reference Chart (6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Security Control System (Without Intelligent Key System) Connector Terminals Reference Chart (7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Security Control System (Without Intelligent Key System) Connector Terminals Reference Chart (8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
