Disassembly and Assembly: Notes

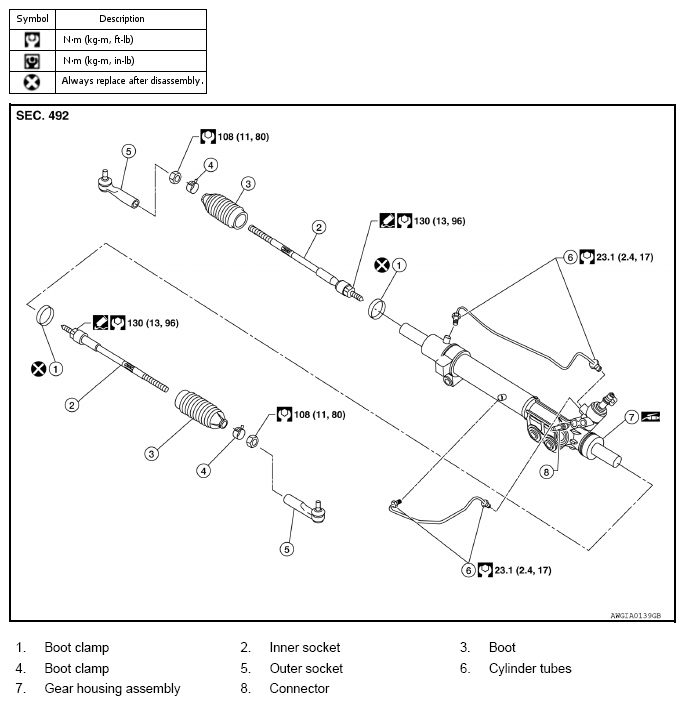

Fig 1: Disassembled View Of Steering Gear And Linkage With Torque Specifications
G08975127Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
  • Secure the gear housing assembly with a vise. Use copper plates or equivalent to prevent it from being damaged. Do not grip the cylinder with a vise.
  • Before performing disassembly, clean the gear housing assembly. Be careful not to allow any cleaner to contact the discharge and return port connectors.
