Component Parts Location

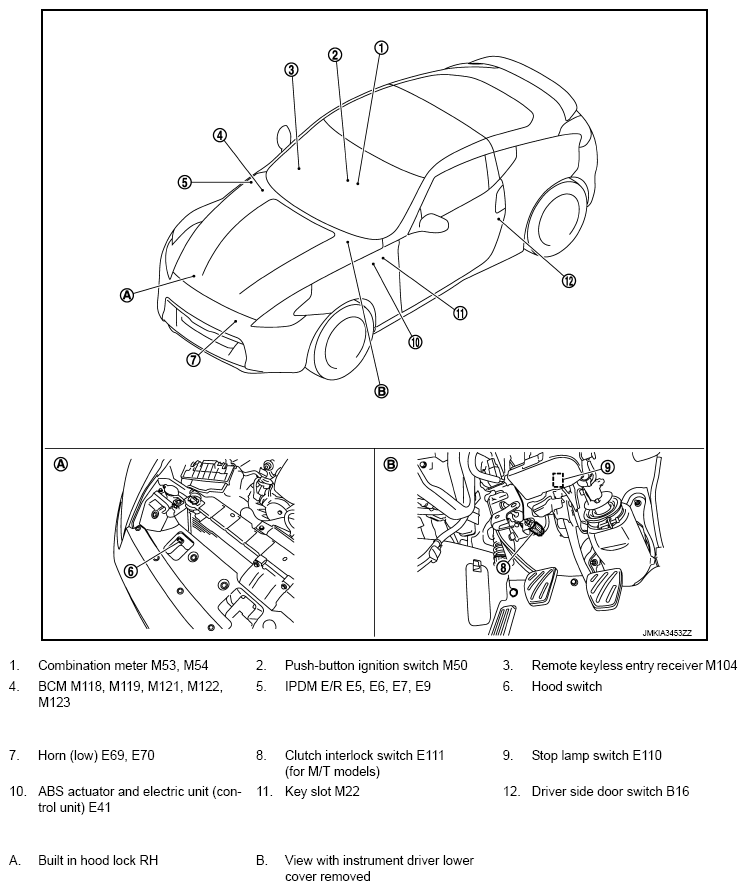

Fig 1: Vehicle Security System Component Parts Location (1 Of 2)
G08678503Courtesy of NISSAN NORTH AMERICA, INC.

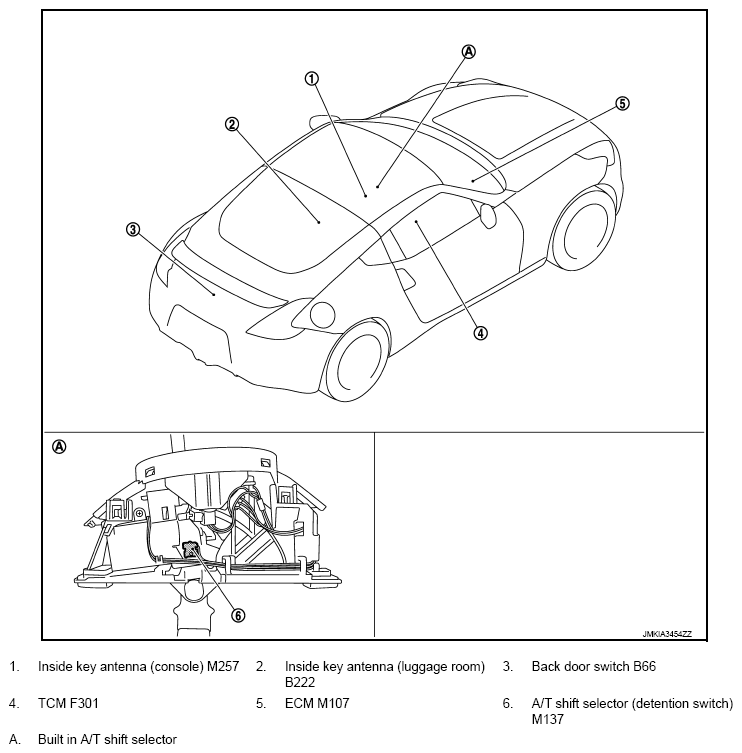

Fig 2: Vehicle Security System Component Parts Location (2 Of 2)
G08678504Courtesy of NISSAN NORTH AMERICA, INC.
