Evaporative Emission Line Drawing

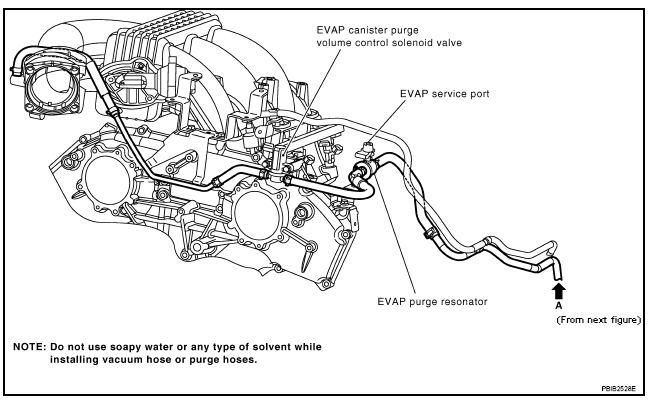

Fig 1: Identifying Evaporative Emission Control Components
G04911410Courtesy of NISSAN NORTH AMERICA, INC.

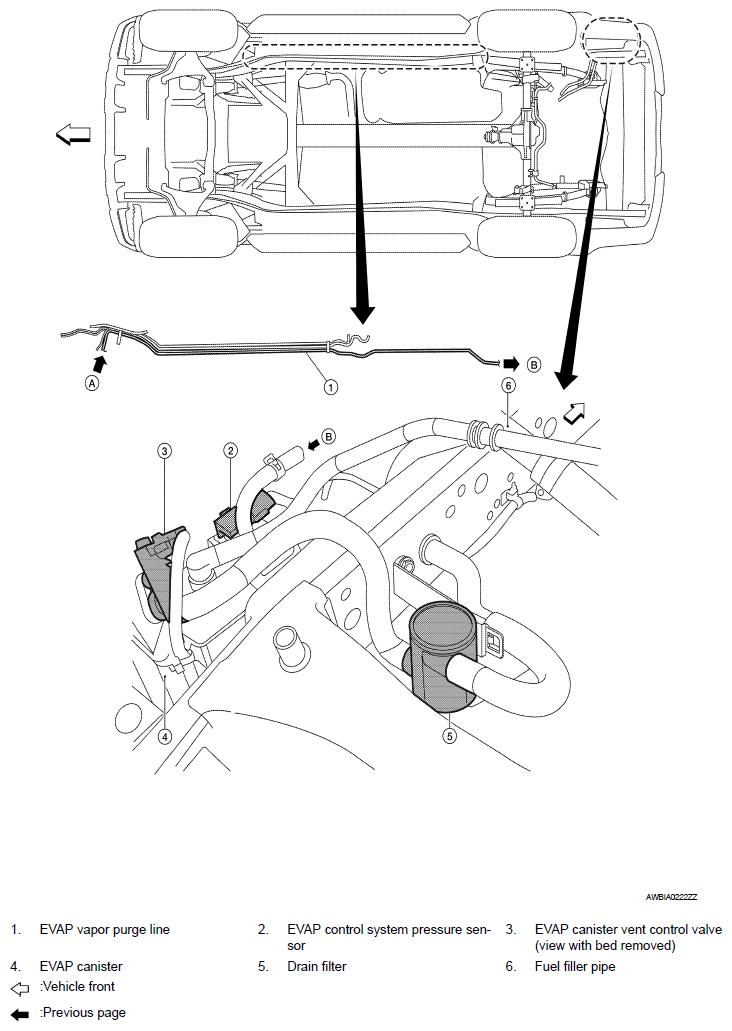

Fig 2: Evaporative Emission Control Components Location
G08200869Courtesy of NISSAN NORTH AMERICA, INC.
