Removal and Installation: Removal

  1. Using a suitable tool, release the metal clip and pawls, then lift the front power window and door lock/unlock switch (1) from the front door finisher RH.

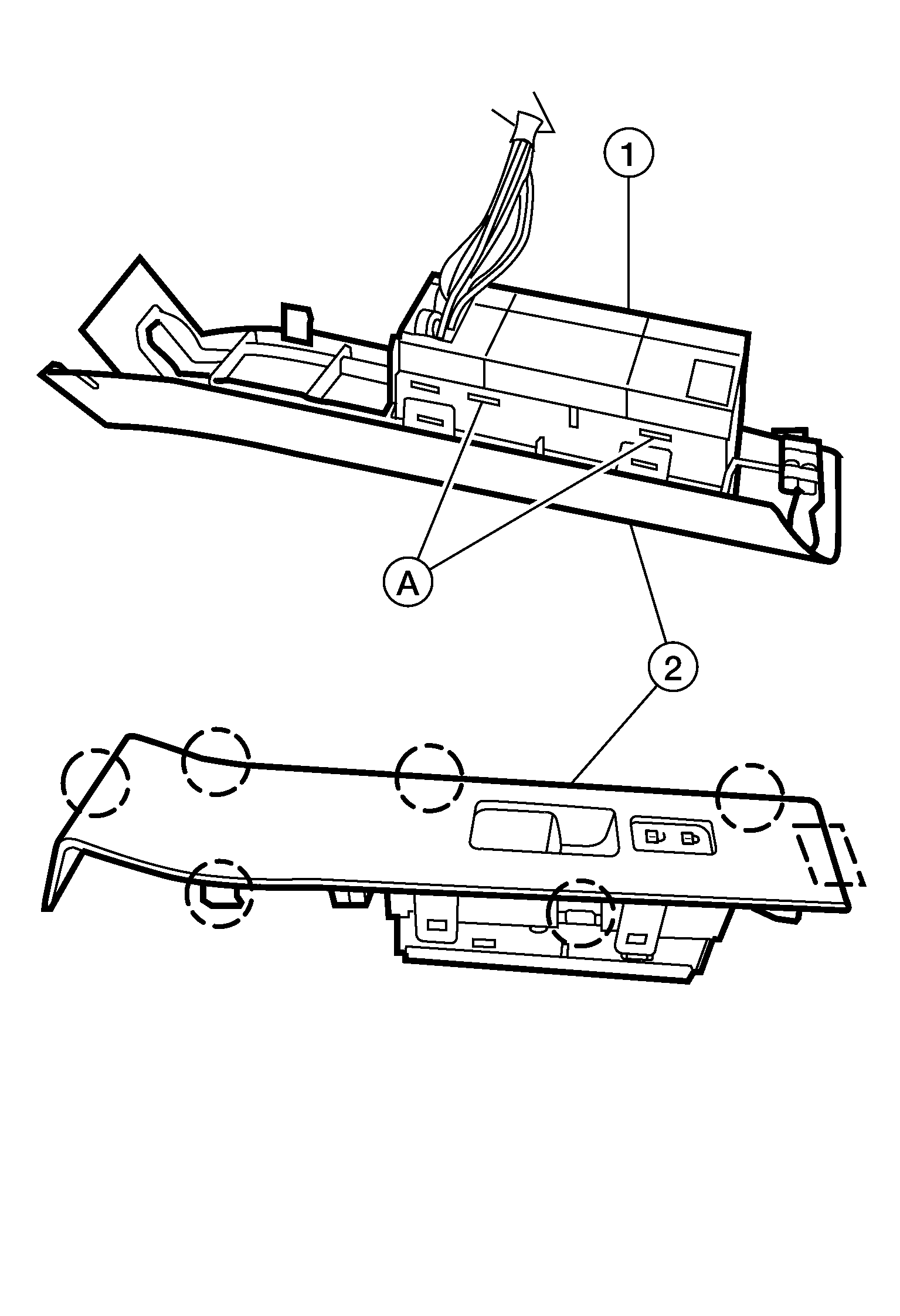

    Fig 1: Identifying Front Power Window Door Lock/Unlock Switch, Finisher And Tabs
    G08202636Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Wrap a cloth around suitable tool to protect components from damage.
  2. Disconnect the harness connectors, then remove the assembly from the door finisher.
  3. Release the four tabs (A), two on each side, then separate the front power window and door lock/unlock switch (1) from the finisher (2).
