Engine Control System: Schematic

WARNING: This page is about a different variant/trim than selected.

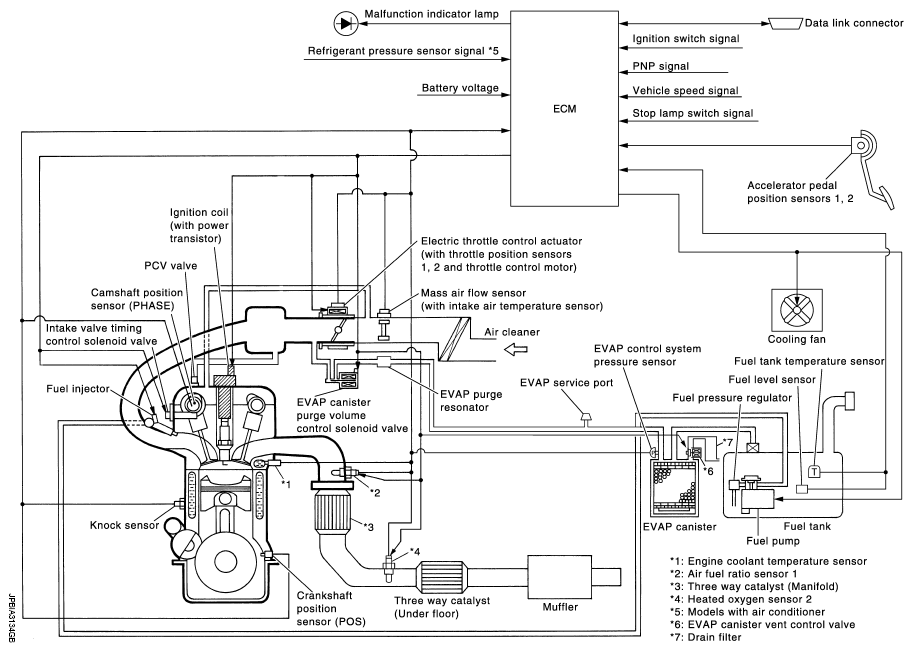

Fig 1: Engine Control System Schematic

G08275187

Courtesy of NISSAN NORTH AMERICA, INC.
