BCM (Body Control Module): Schematic

WARNING: This page is about a different variant/trim than selected.

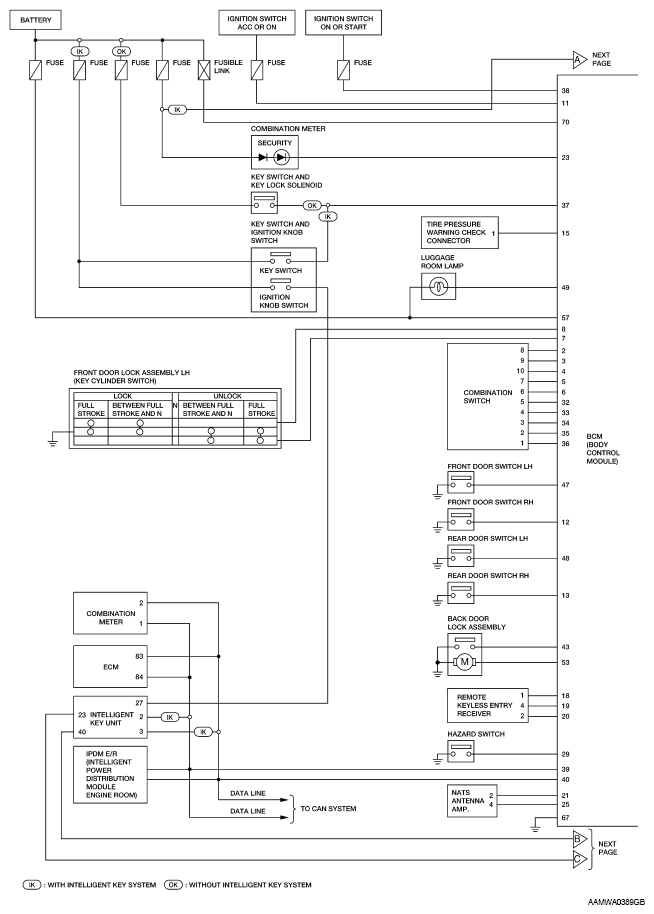

Fig 1: Body Control Module Schematic (1 Of 2)
G08274204Courtesy of NISSAN NORTH AMERICA, INC.

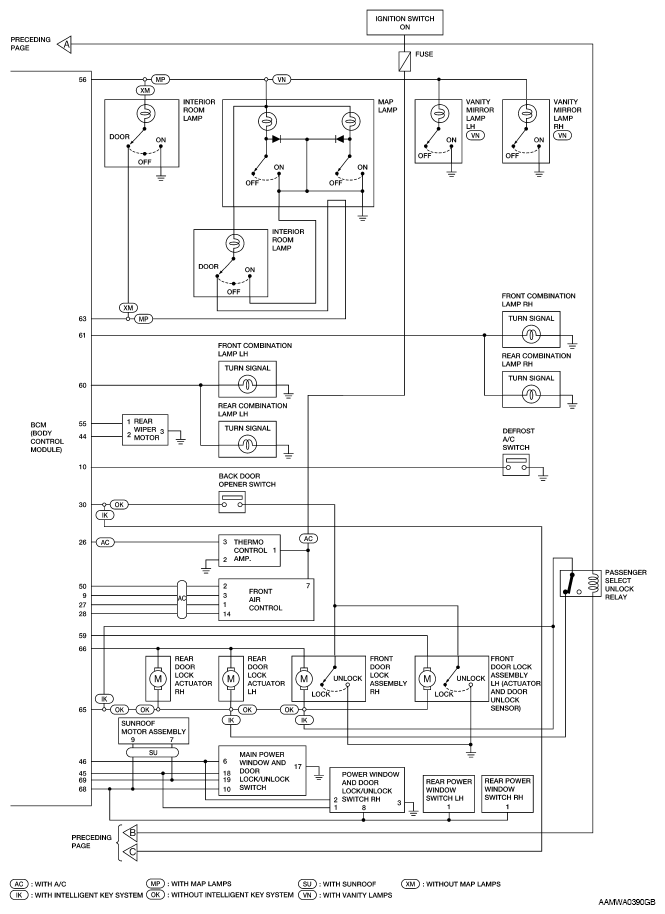

Fig 2: Body Control Module Schematic (2 Of 2)
G08274205Courtesy of NISSAN NORTH AMERICA, INC.
