System - Engine Mechanical & Other

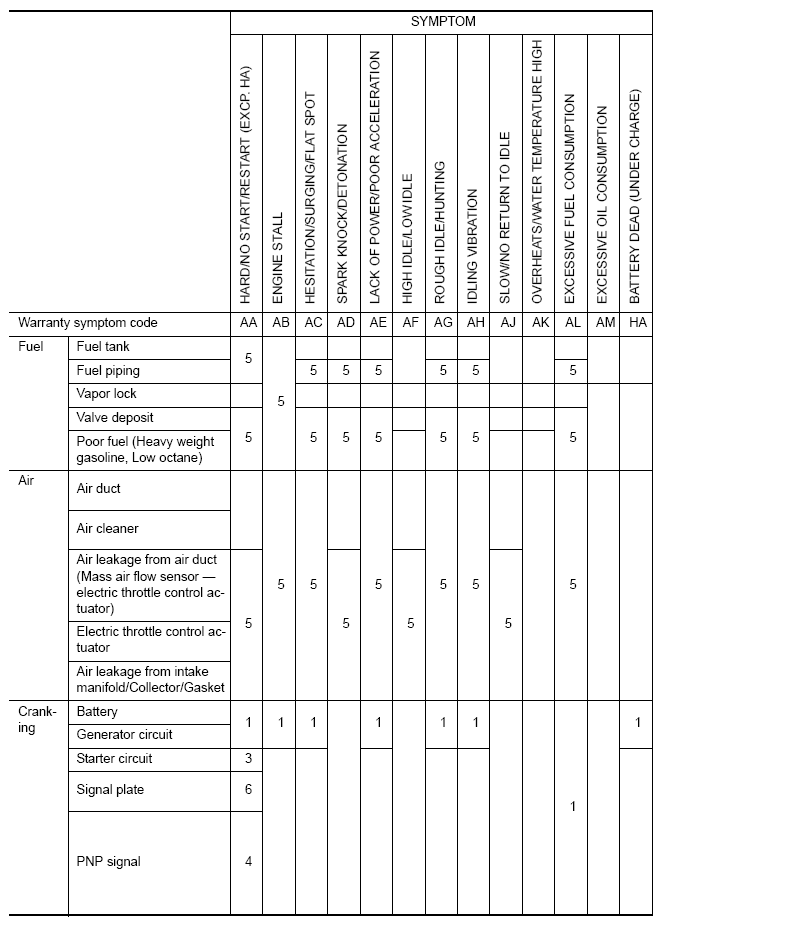

Fig 1: Mechanical And Other Engine Control System Symptoms Chart (1 Of 3)
G08199652Courtesy of NISSAN NORTH AMERICA, INC.

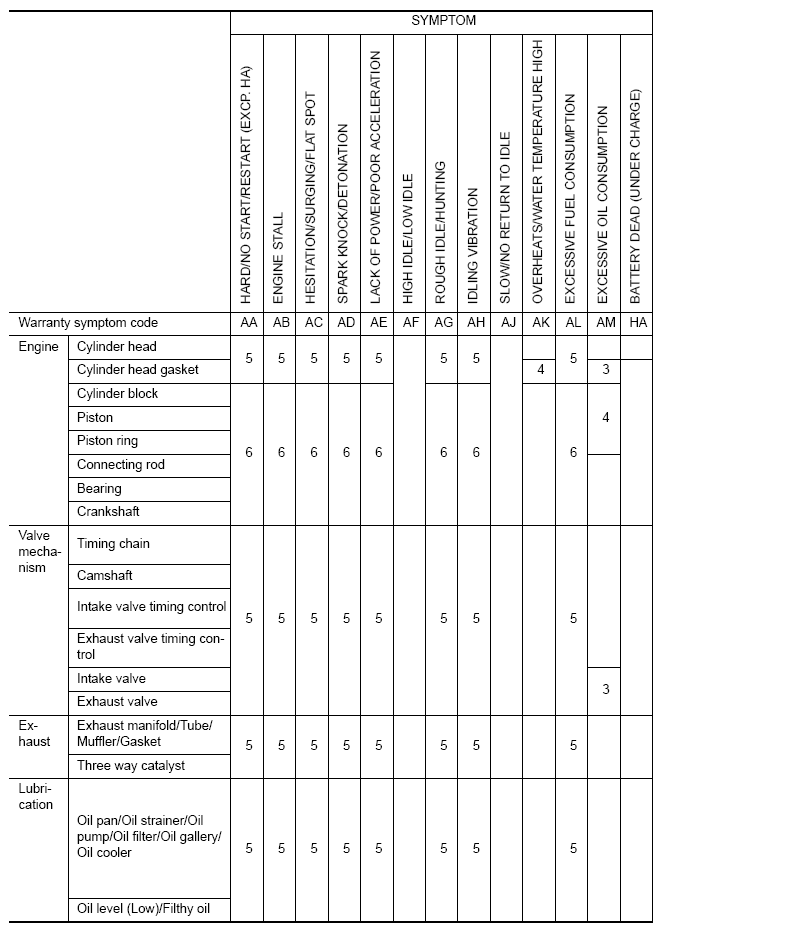

Fig 2: Mechanical And Other Engine Control System Symptoms Chart (2 Of 3)
G08199653Courtesy of NISSAN NORTH AMERICA, INC.

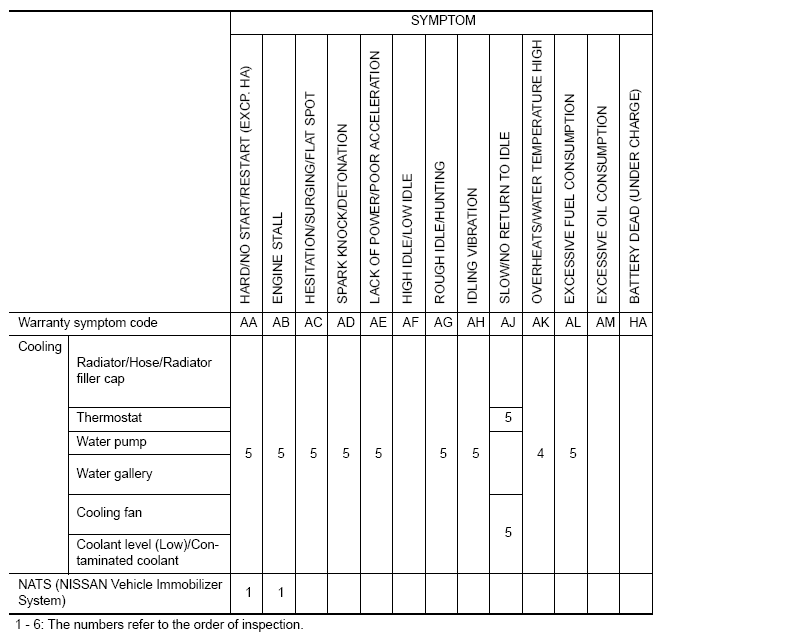

Fig 3: Mechanical And Other Engine Control System Symptoms Chart (3 Of 3)
G08199654Courtesy of NISSAN NORTH AMERICA, INC.
