Home >> Nissan-Datsun >> 2012 >> Versa SL, 4D Hatchback >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Introduction (Hatchback) >> Service Information >> Trouble Diagnosis >> Symptom Matrix Chart >> System - Engine Mechanical & Other

System - Engine Mechanical & Other

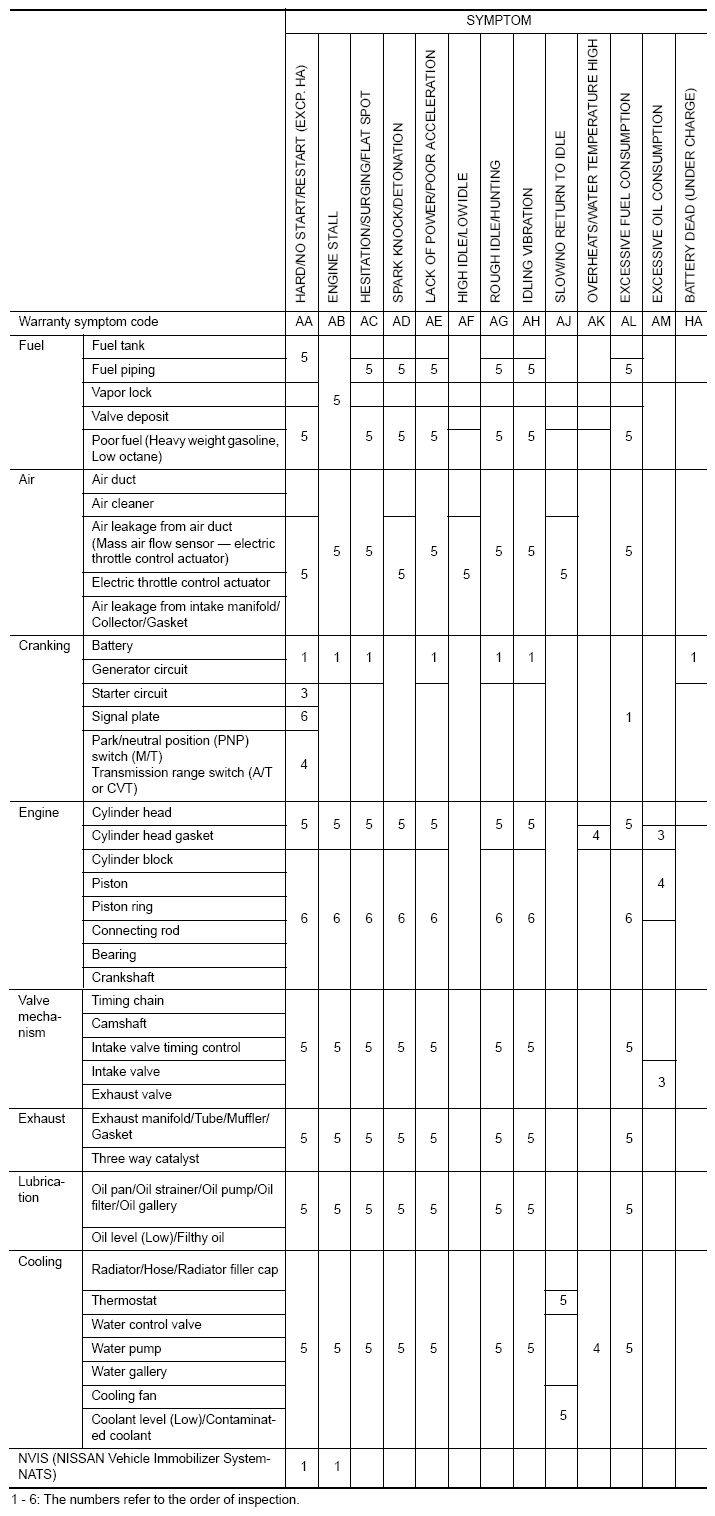

Fig 1: Identifying Engine Mechanical & Other System Symptom Matrix Chart

G08275252

Courtesy of NISSAN NORTH AMERICA, INC.
