Intake Manifold: Component

WARNING: This page is about a different variant/trim than selected.

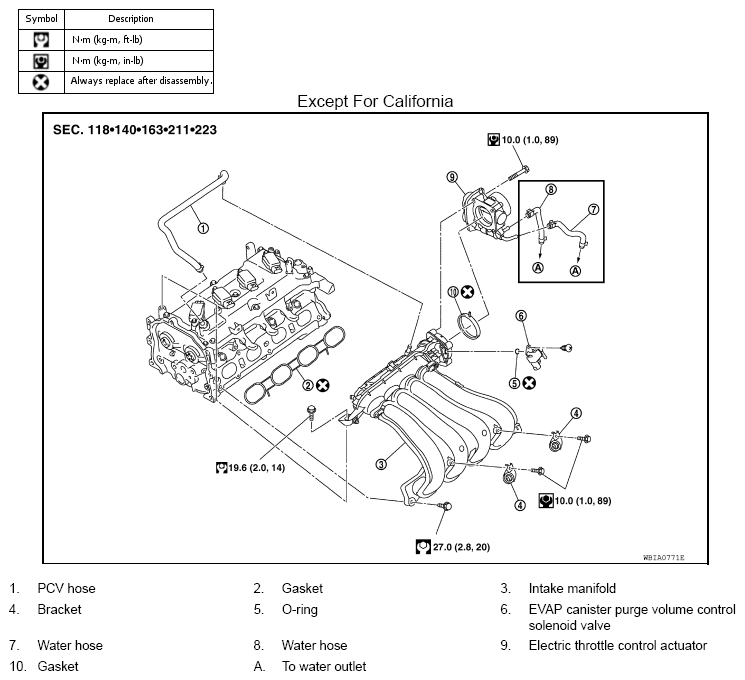

Fig 1: Exploded View Of Intake Manifold With Torque Specifications (Except California)
G08502733Courtesy of NISSAN NORTH AMERICA, INC.

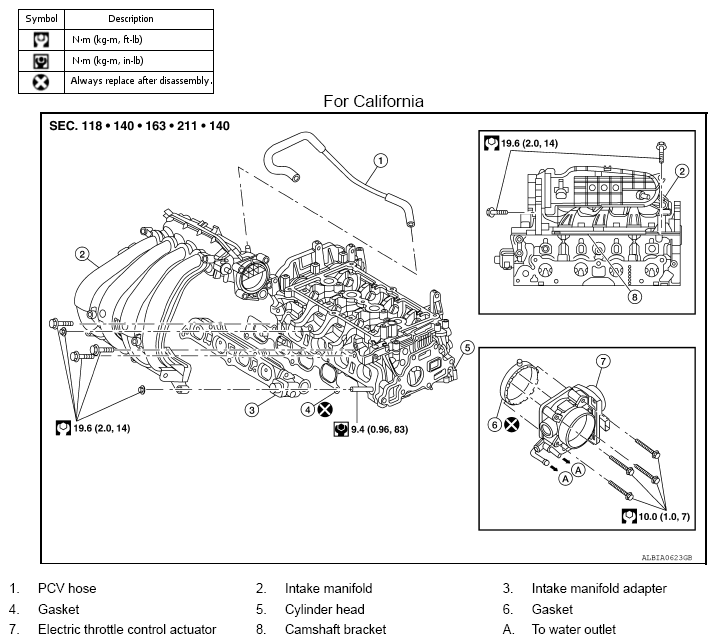

Fig 2: Exploded View Of Intake Manifold With Torque Specifications (California)
G08502734Courtesy of NISSAN NORTH AMERICA, INC.
