Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass, Window System & Mirrors
>>
Service Information
>>
Power Window System
>>
Wiring Diagram - WINDOW -
Wiring Diagram - WINDOW -

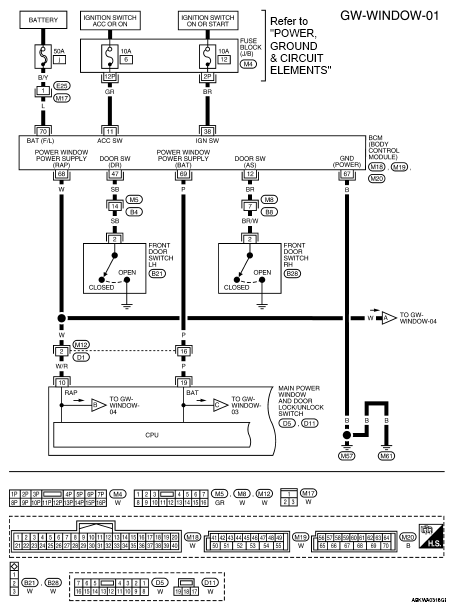

Fig 1: Identifying Power Window Wiring Diagram With Connector End View (GW-WINDOW-01)
Courtesy of NISSAN NORTH AMERICA, INC.

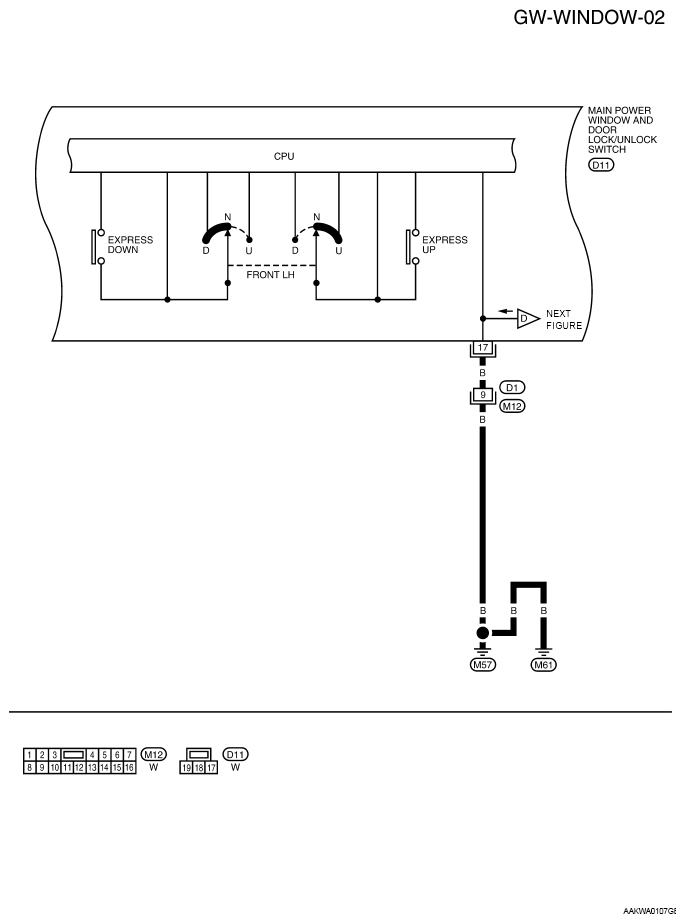

Fig 2: Identifying Power Window Wiring Diagram With Connector End View (GW-WINDOW-02)
Courtesy of NISSAN NORTH AMERICA, INC.

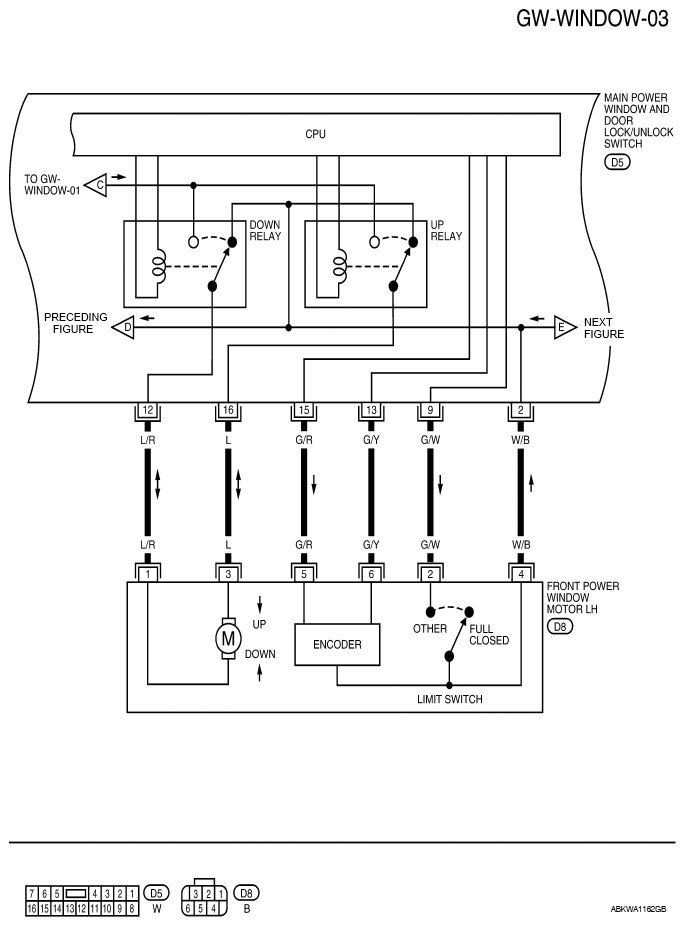

Fig 3: Identifying Power Window Wiring Diagram With Connector End View (GW-WINDOW-03)
Courtesy of NISSAN NORTH AMERICA, INC.

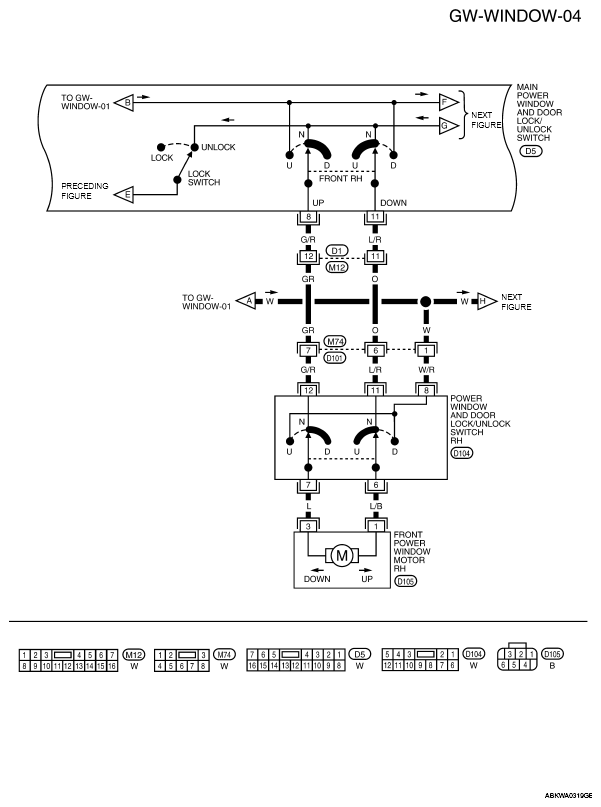

Fig 4: Identifying Power Window Wiring Diagram With Connector End View (GW-WINDOW-04)
Courtesy of NISSAN NORTH AMERICA, INC.

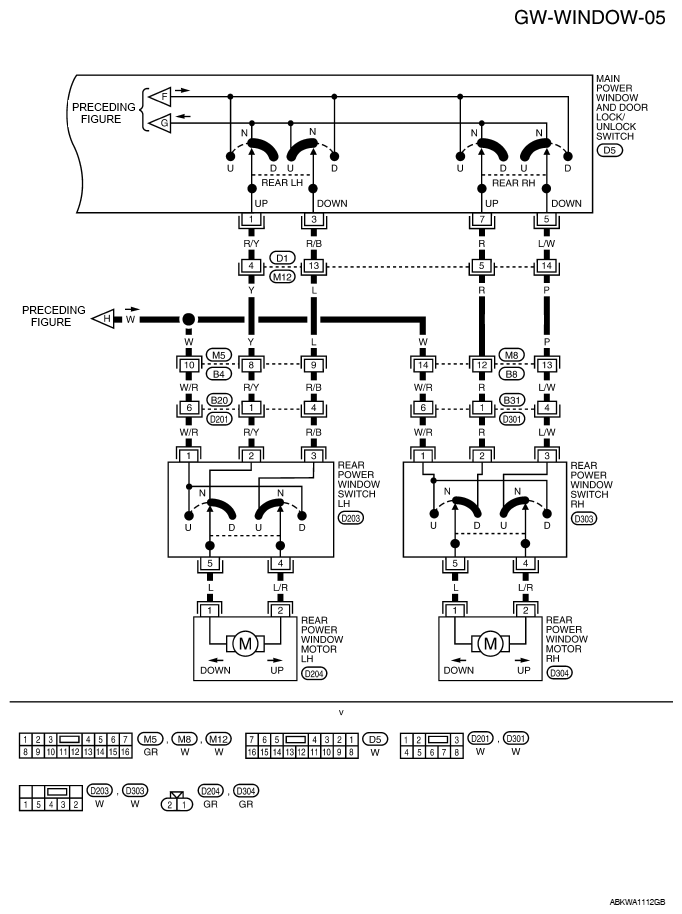

Fig 5: Identifying Power Window Wiring Diagram With Connector End View (GW-WINDOW-05)
Courtesy of NISSAN NORTH AMERICA, INC.
