With ROCKFORD FOSGATE

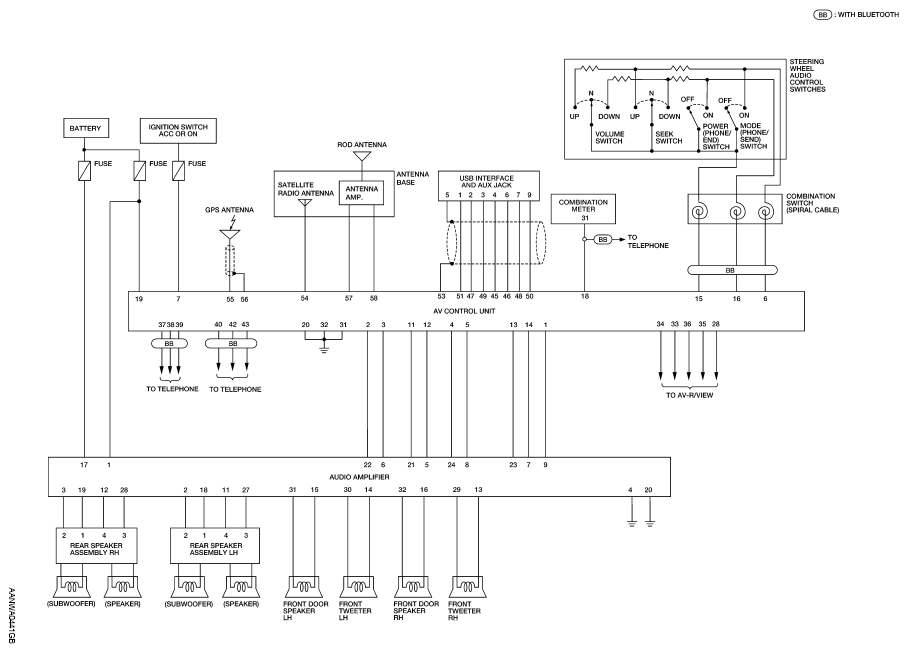

Fig 1: Identifying Audio Schematic (With Rockford Fosgate)

G08182340

Courtesy of NISSAN NORTH AMERICA, INC.
