Engine Control System - Introduction (MR20DE) (CALIFORNIA)
>>
Service Information
>>
Trouble Diagnosis
>>
Circuit Diagram
Circuit Diagram

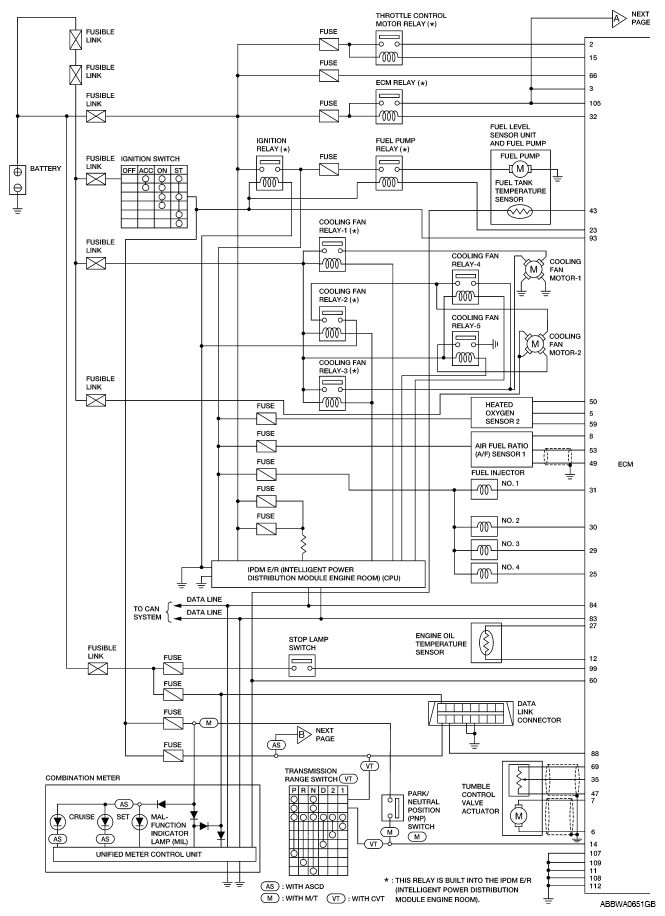

Fig 1: Engine Control - Circuit Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

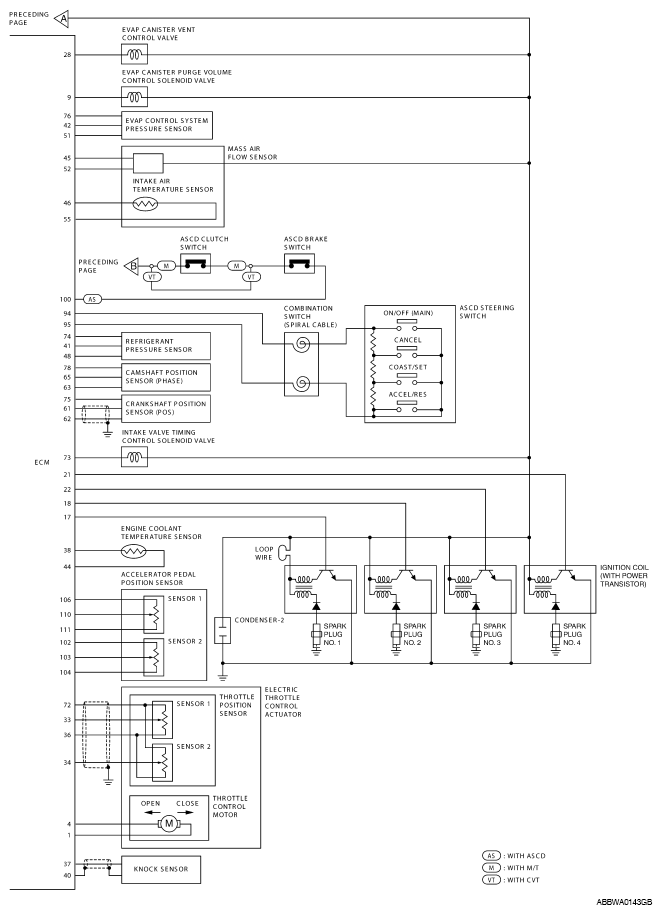

Fig 2: Engine Control - Circuit Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
