Component Description: Notes

ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of switch, and determines which button is operated.

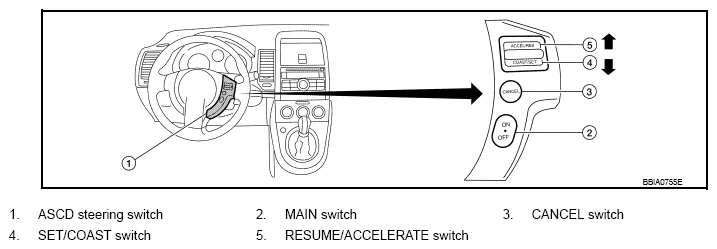

Fig 1: ASCD Steering Switch Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to AUTOMATIC SPEED CONTROL DEVICE (ASCD) for the ASCD function.
