DTC P0452: EVAP Control System Pressure Sensor: Wiring Diagram

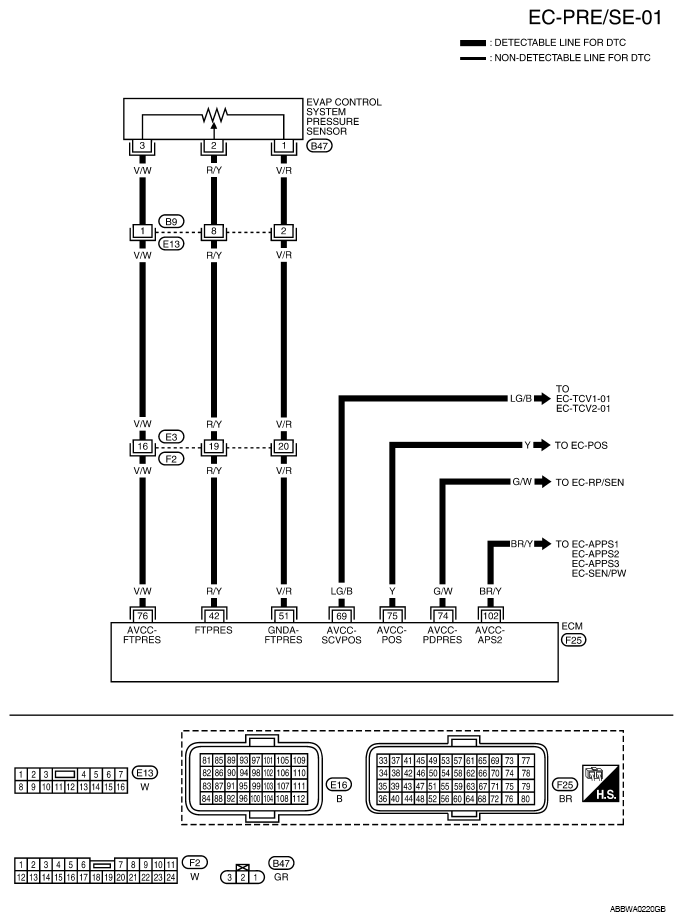

Fig 1: Identifying Wiring Diagram With Connector End View (EC-PRE/SE-01)

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Terminal No.	Wire color	Item	Condition	Data (DC voltage)
42	R/Y	EVAP control system pressure sensor	[Ignition switch: ON]	Approximately 1.8 - 4.8 V
51	V/R	Sensor ground (EVAP control system pressure sensor)	[Engine is running] Warm-up condition Idle speed	Approximately 0 V
69	LG/B	Sensor power supply (Tumble control valve position sensor)	[Ignition switch: ON]	Approximately 5 V
74	G/W	Sensor power supply (Refrigerant pressure sensor)	[Ignition switch: ON]	Approximately 5 V
75	Y	Sensor power supply [Crankshaft position sensor (POS)]	[Ignition switch: ON]	Approximately 5 V
76	V/W	EVAP control system pressure sensor power supply	[Ignition switch: ON]	Approximately 5 V
102	BR/Y	Sensor power supply (APP sensor 2)	[Ignition switch: ON]	Approximately 5 V
