System Diagram

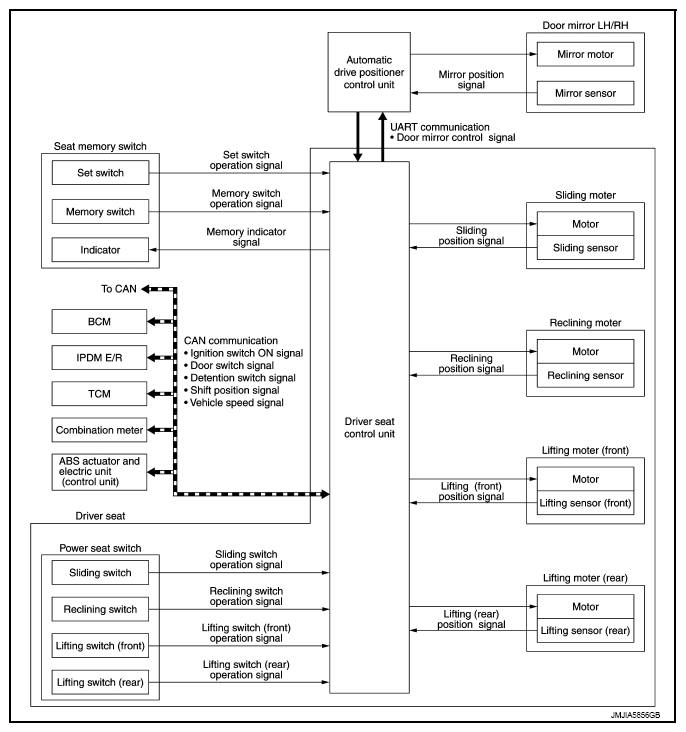

Fig 1: Identifying Memory Function System Diagram

G08172839

Courtesy of NISSAN NORTH AMERICA, INC.
