Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Driver Assistance System (BSW)
>>
System Description
>>
Diagnosis System (BSW Control Module)
>>
CONSULT Function (BSW)
>>
Data Monitor
Data Monitor
NOTE:
SIGNAL B, SIGNAL C are displayed, but not used.

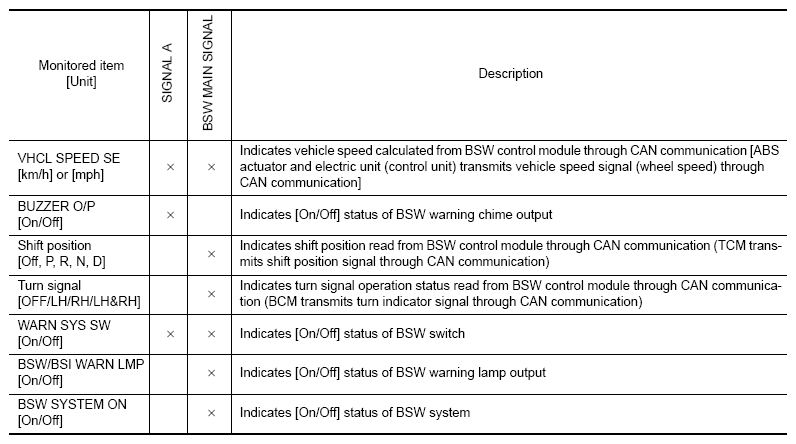

Fig 1: Identifying BSW Control Module Data Monitor Table
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
