Overall Sequence

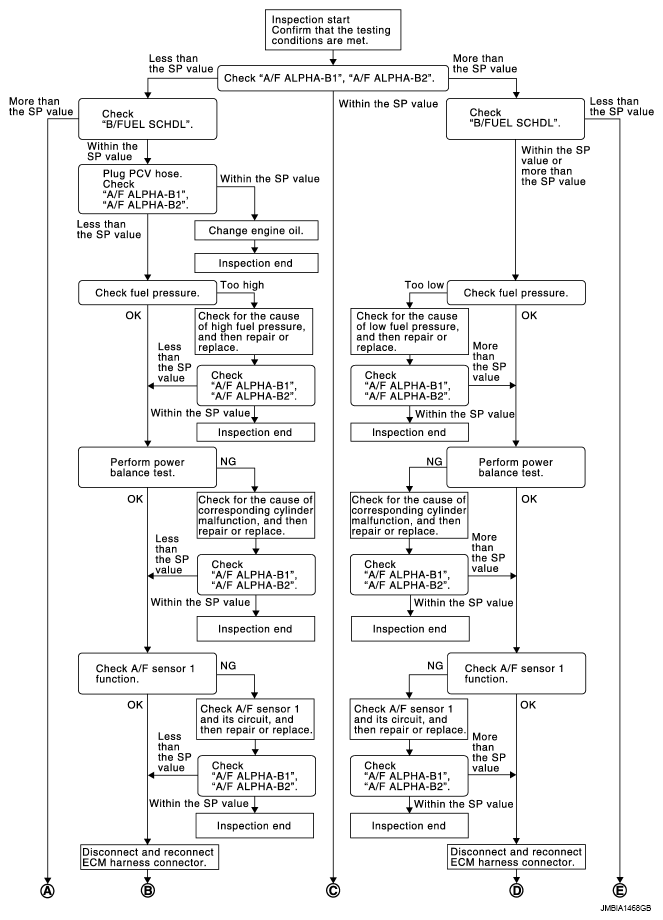

Fig 1: Identifying Trouble Diagnosis Flow Chart (1 Of 2)
G08171498Courtesy of NISSAN NORTH AMERICA, INC.

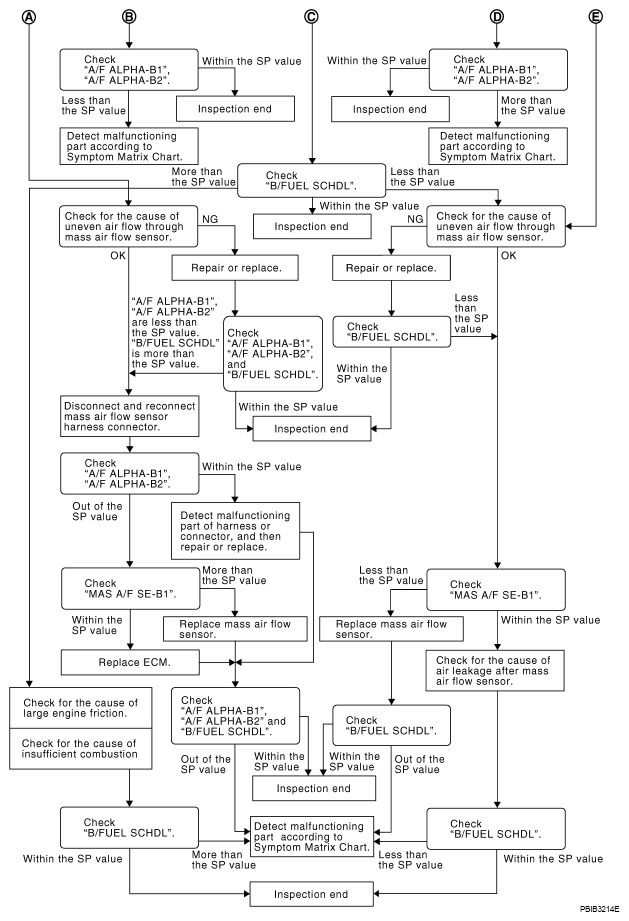

Fig 2: Identifying Trouble Diagnosis Flow Chart (2 Of 2)
G08171499Courtesy of NISSAN NORTH AMERICA, INC.
