ENGINE CONTROL SYSTEM: Component Parts Location: Exhaust

WARNING: This page is about a different variant/trim than selected.

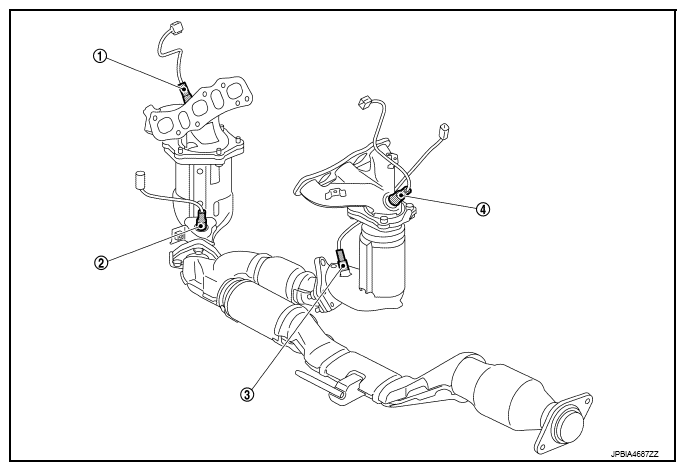

Fig 1: Identifying Engine Control System Component Parts Location (Exhaust)
G08428729Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
1. Air fuel ratio (A/F) sensor 1 (bank 2) "AIR FUEL RATIO (A/F) SENSOR 1 "
2. Heated oxygen sensor 2 (bank 2) "HEATED OXYGEN SENSOR 2 "
3. Heated oxygen sensor 2 (bank 1) "HEATED OXYGEN SENSOR 2 "
4. Air fuel ratio (A/F) sensor 1 (bank 1) "AIR FUEL RATIO (A/F) SENSOR 1 "
