Without CONSULT

WARNING: This page is about a different variant/trim than selected.
  1. Remove fuel pump fuse (2) located in IPDM E/R (1).
  2. Start engine.
  3. After engine stalls, crank it 2 or 3 times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.

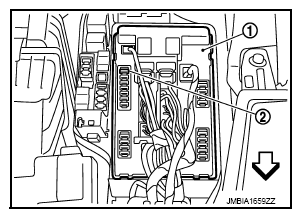

    Fig 1: Identifying Fuel Pump Fuse And IPDM E/R
    G08428828Courtesy of NISSAN NORTH AMERICA, INC.
