Exploded View: Disassembly

WARNING: This page is about a different variant/trim than selected.

Type: M000TA0072

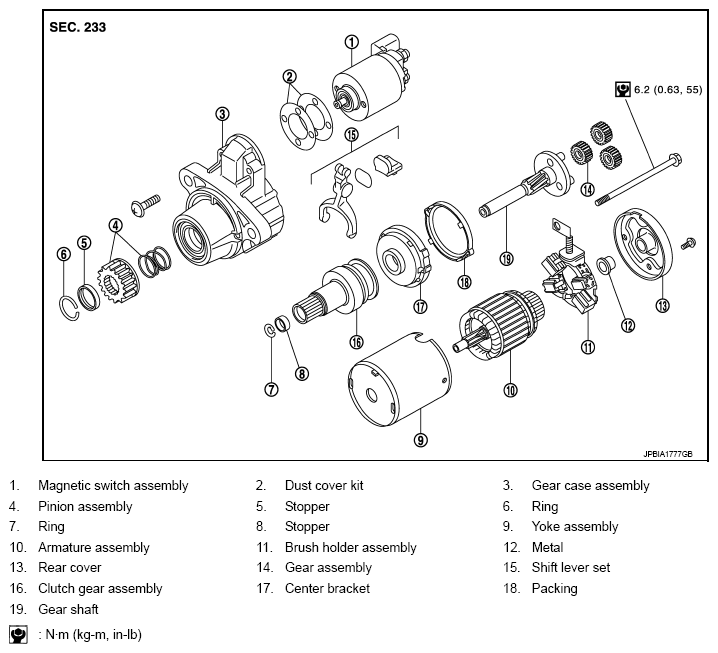

Fig 1: Disassembled View Of Starter Motor With Torque Specification
G08428992Courtesy of NISSAN NORTH AMERICA, INC.
