Right Side

WARNING: This page is about a different variant/trim than selected.

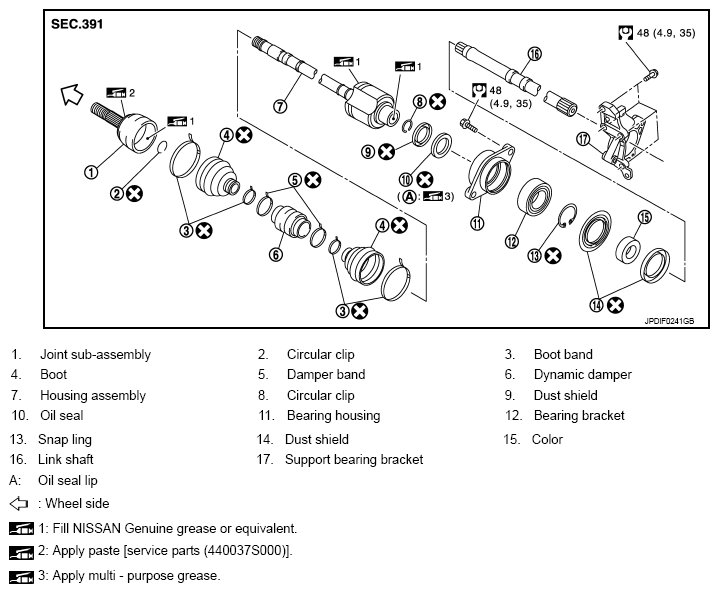

Fig 1: Exploded View Of Front Drive Shaft Boot With Torque Specifications (Right Side)
G08429314Courtesy of NISSAN NORTH AMERICA, INC.
