Section 17 (Engine Lubrication System (CROSSCABRIOLET))
>>
Unit Disassembly And Assembly
>>
Oil Pump
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

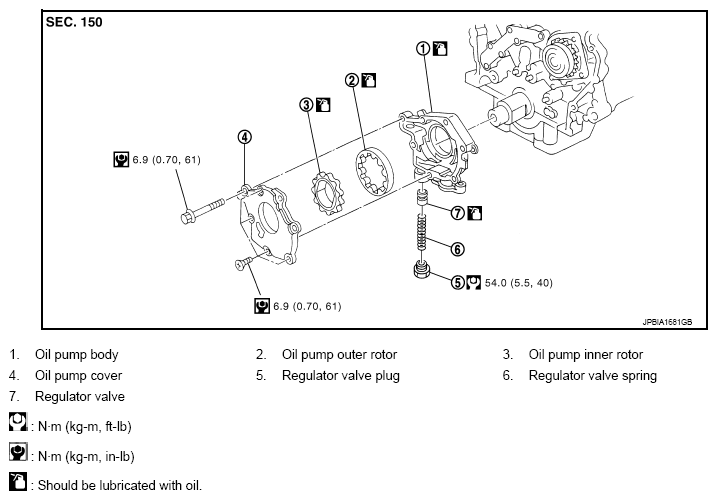

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
