Engine Cooling System Schematic

WARNING: This page is about a different variant/trim than selected.

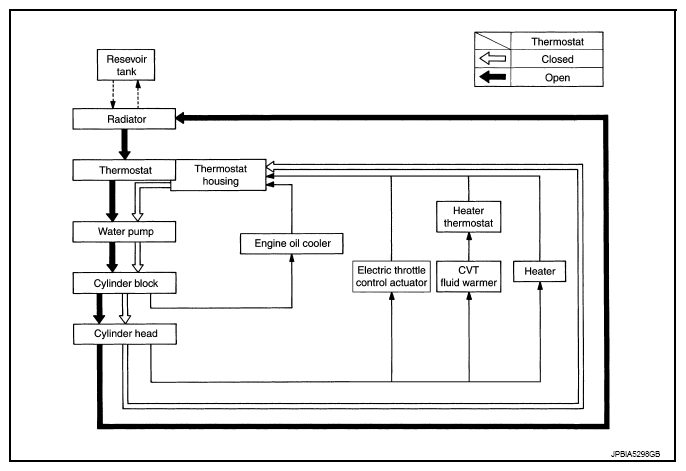

Fig 1: Engine Cooling System Schematic

G08428671

Courtesy of NISSAN NORTH AMERICA, INC.
