Consult/GST Checking System: Description

WARNING: This page is about a different variant/trim than selected.

When CONSULT/GST is connected with a data link connector (A) equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

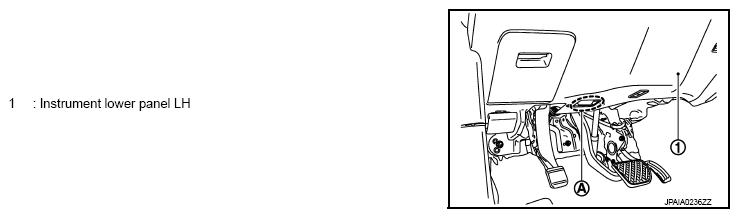

Fig 1: Identifying Instrument Lower Panel LH And Data Link Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "CONSULT Software Operation Manual" for more information.
