Home >> Nissan-Datsun >> 2012 >> Murano SL, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Component Testing (Except CROSSCABRIOLET) >> Periodic Maintenance >> Fuel Pressure >> Inspection >> Fuel Pressure Release >> Without CONSULT

Without CONSULT

  1. Remove fuel pump fuse (2) located in IPDM E/R (1).
  2. Start engine.
  3. After engine stalls, crank it 2 or 3 times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.

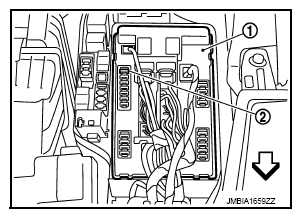

Fig 1: Identifying IPDM E/R And Fuel Pump Fuse
G08479377Courtesy of NISSAN NORTH AMERICA, INC.
