Home >> Nissan-Datsun >> 2012 >> Murano SL, AWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical (Except CROSSCABRIOLET) >> Removal And Installation >> Timing Chain >> Exploded View

Exploded View

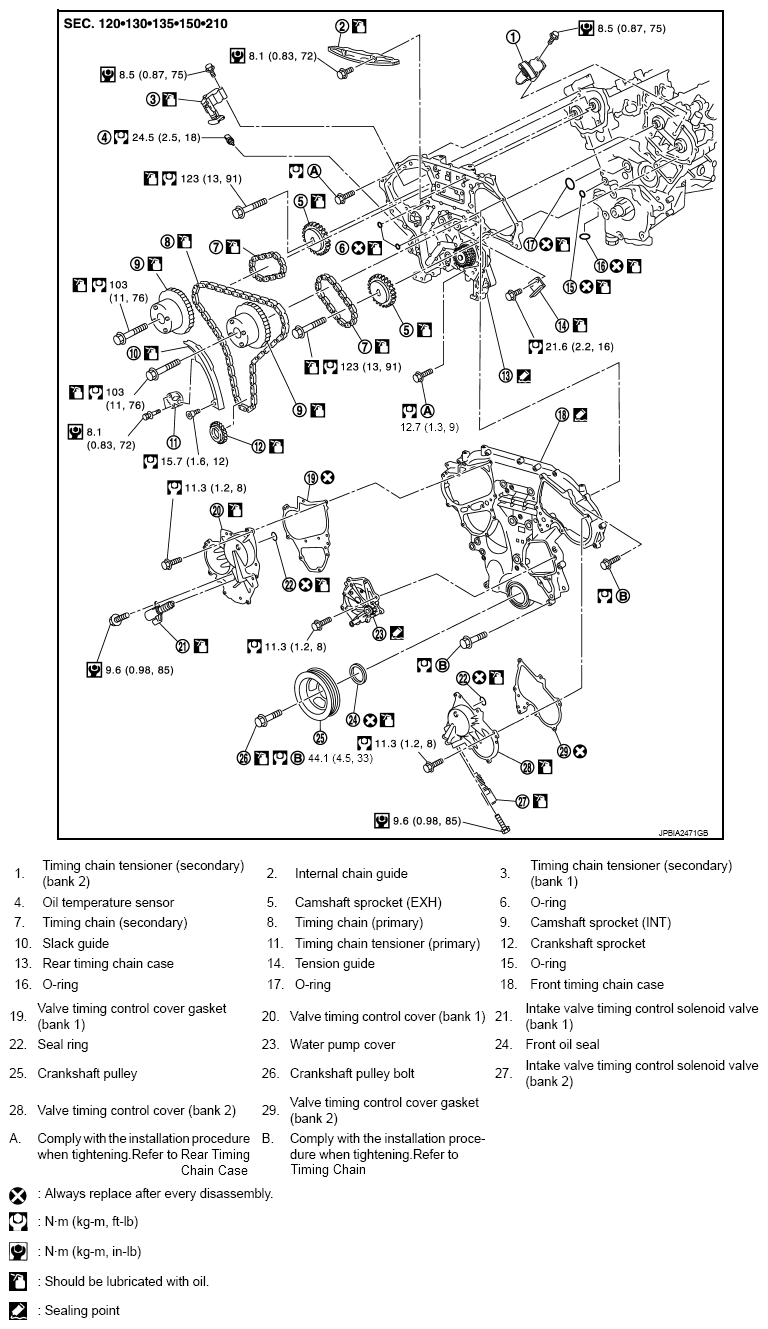

Fig 1: Exploded View Of Timing Chain With Torque Specifications

G08478481

Courtesy of NISSAN NORTH AMERICA, INC.
