Engine Mechanical
>>
Engine Lubrication System (Except CROSSCABRIOLET)
>>
Removal And Installation
>>
Oil Cooler
>>
Exploded View
Exploded View

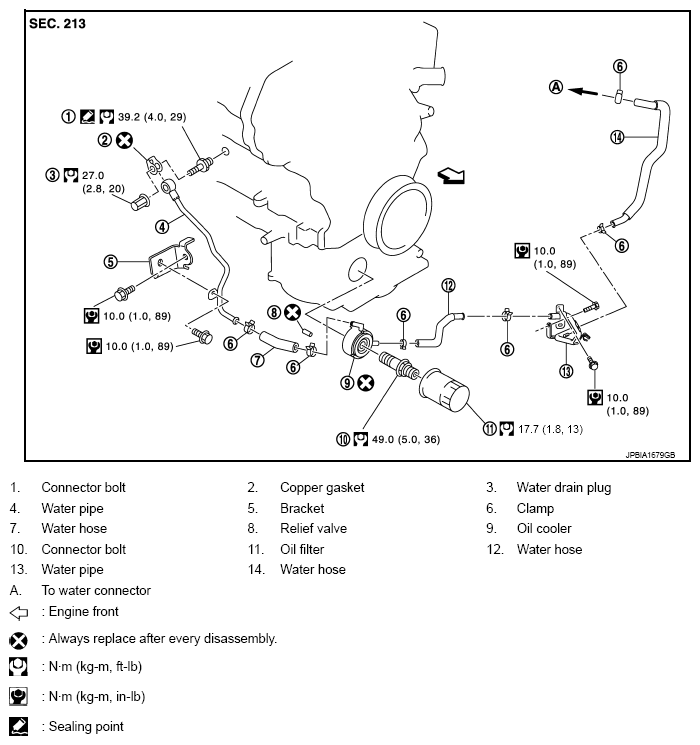

Fig 1: Exploded View Of Oil Cooler With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
