Yaw Rate/Side/DECEL G Sensor
>>
Exploded View
Exploded View

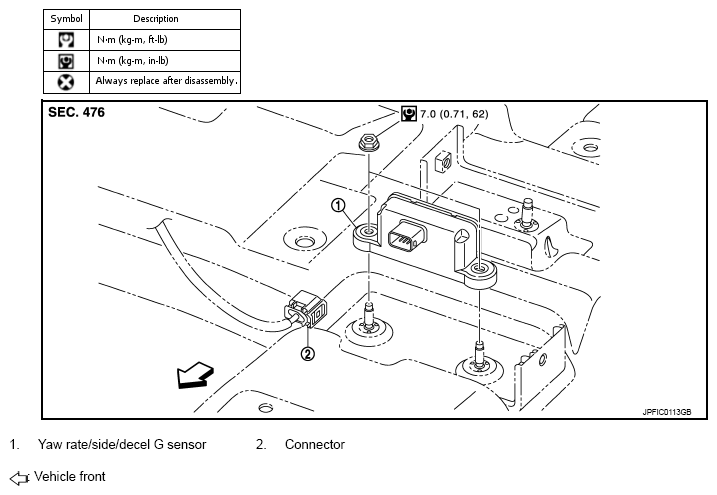

Fig 1: Identifying Yaw Rate/Side/Decel G Sensor And Connector With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbol in the figure.
