Exploded View

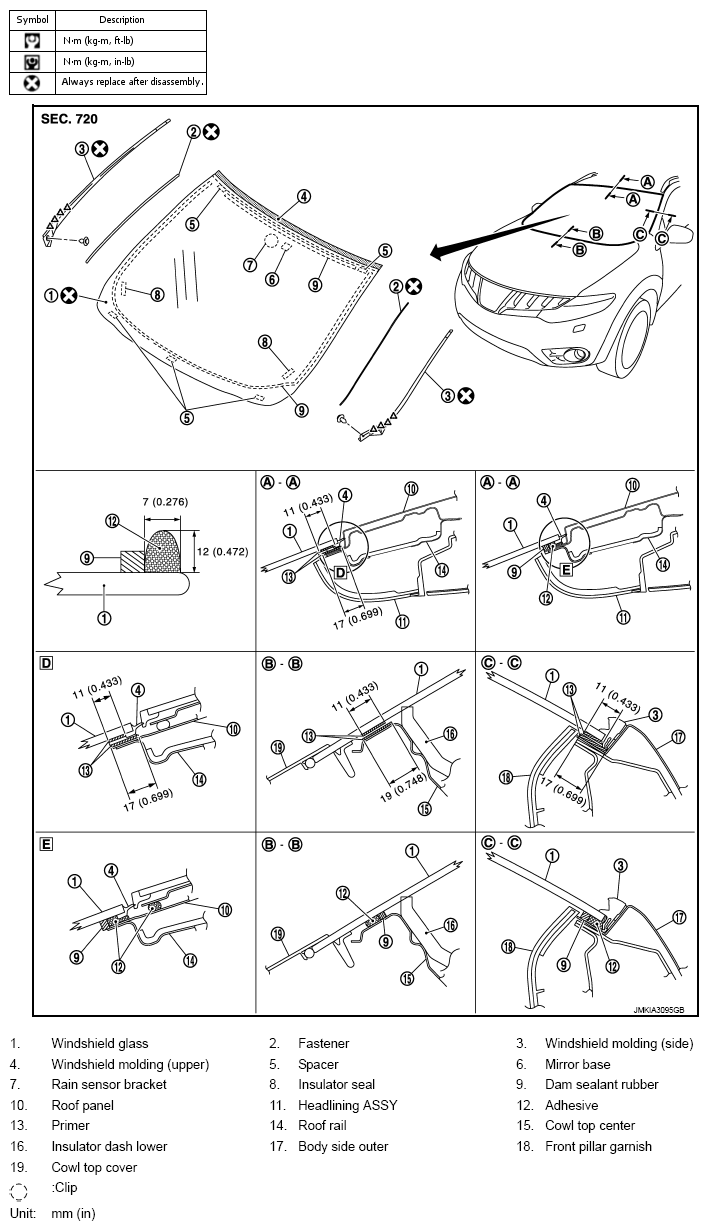

Fig 1: Exploded View Of Windshield Glass

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

D and E on the exploded view are sections of sunroof models.
The windshield glass, windshield molding upper, spacer, mirror base, rain sensor bracket, insulator seal and dam sealant rubber constitute the windshield glass assembly.

Refer to COMPONENTS for symbols in the figure.
