Exploded View

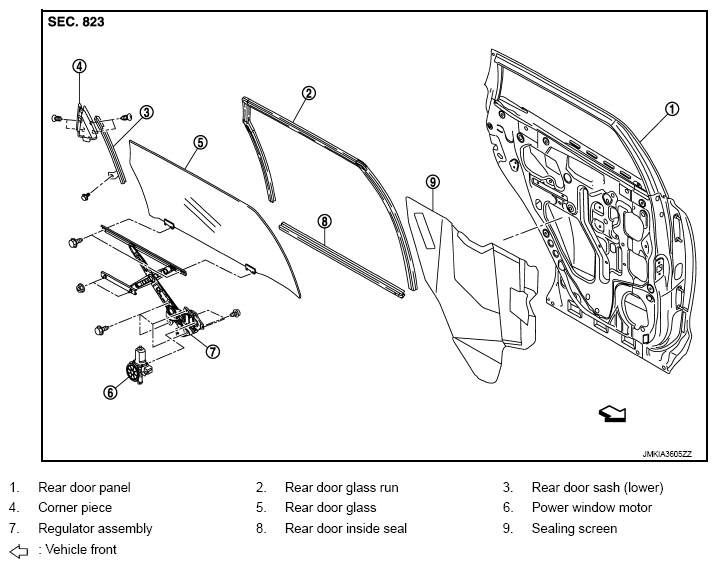

Fig 1: Exploded View Of Rear Regulator

G08481509

Courtesy of NISSAN NORTH AMERICA, INC.
