Home >> Nissan-Datsun >> 2012 >> Murano SL, AWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass & Window System (Except CROSSCABRIOLET) >> Removal And Installation >> Front Door Glass >> Exploded View

Exploded View

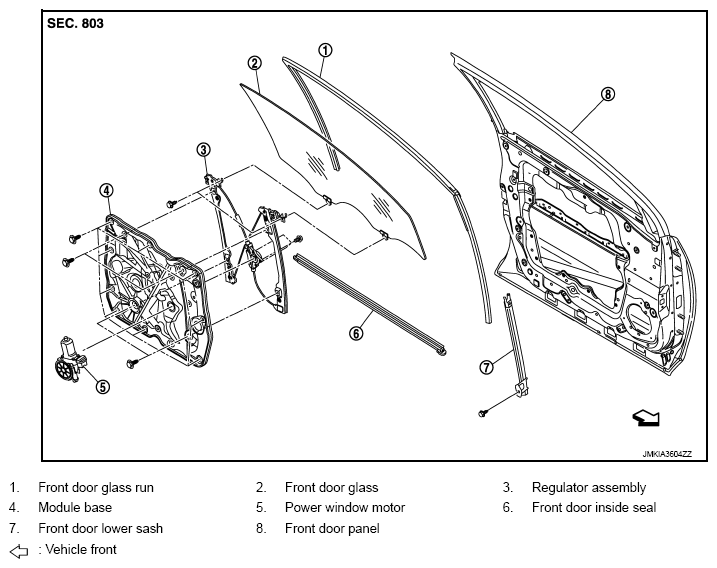

Fig 1: Exploded View Of Front Door Glass

G08481498

Courtesy of NISSAN NORTH AMERICA, INC.
