Back Door Window Glass
>>
Exploded View
Exploded View

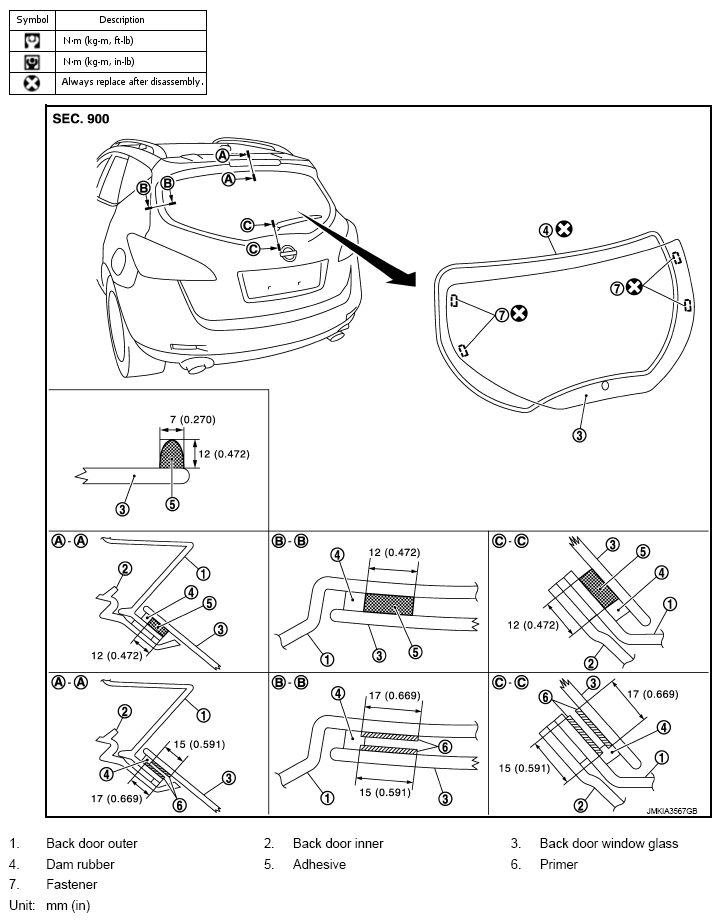

Fig 1: Exploded View Of Back Door Window Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to
COMPONENTS
for symbols in the figure.
