Mike's Workshop Manuals
: Service manuals for every vehicle
Home
>>
Nissan-Datsun
>>
2012
>>
Maxima S
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Window System
>>
Removal And Installation
>>
Rear Window Glass
>>
Exploded View
Exploded View

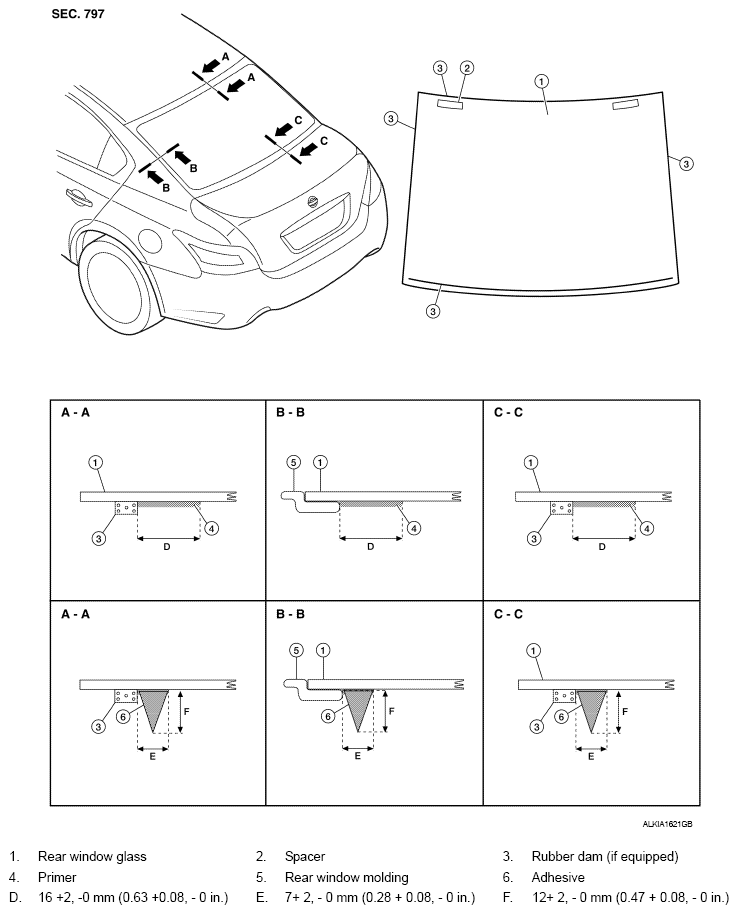

Fig 1: Exploded View Of Rear Window Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
