Nissan-Datsun
>>
2012
>>
Juke SL, FWD, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
Seat Belts
>>
Precaution
>>
Removal And Installation
>>
Front Seat Belt
>>
Exploded View
Exploded View

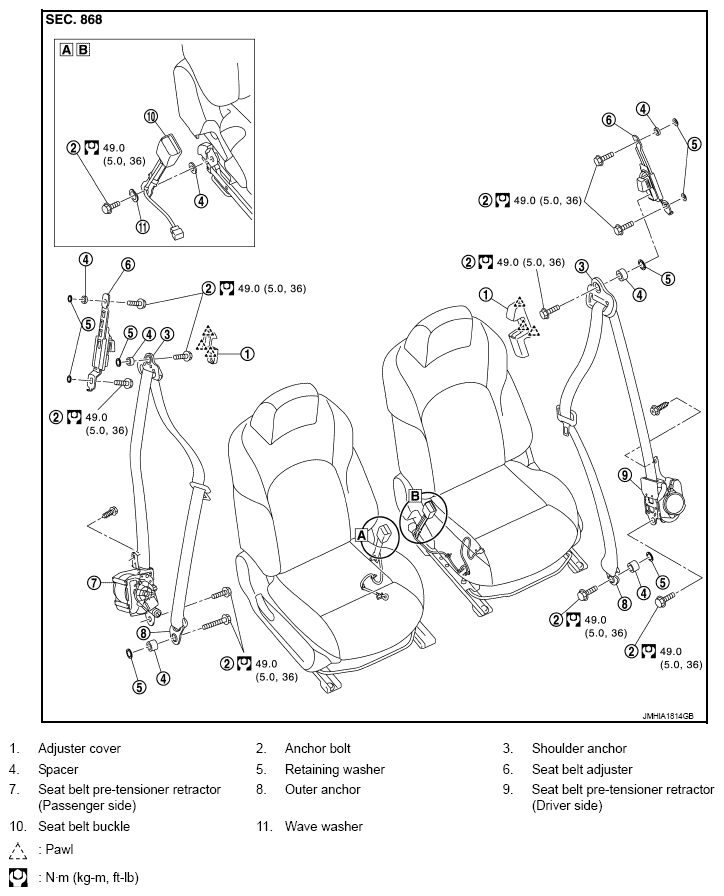

Fig 1: Exploded View Of Front Seat Belt With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
