Exploded View

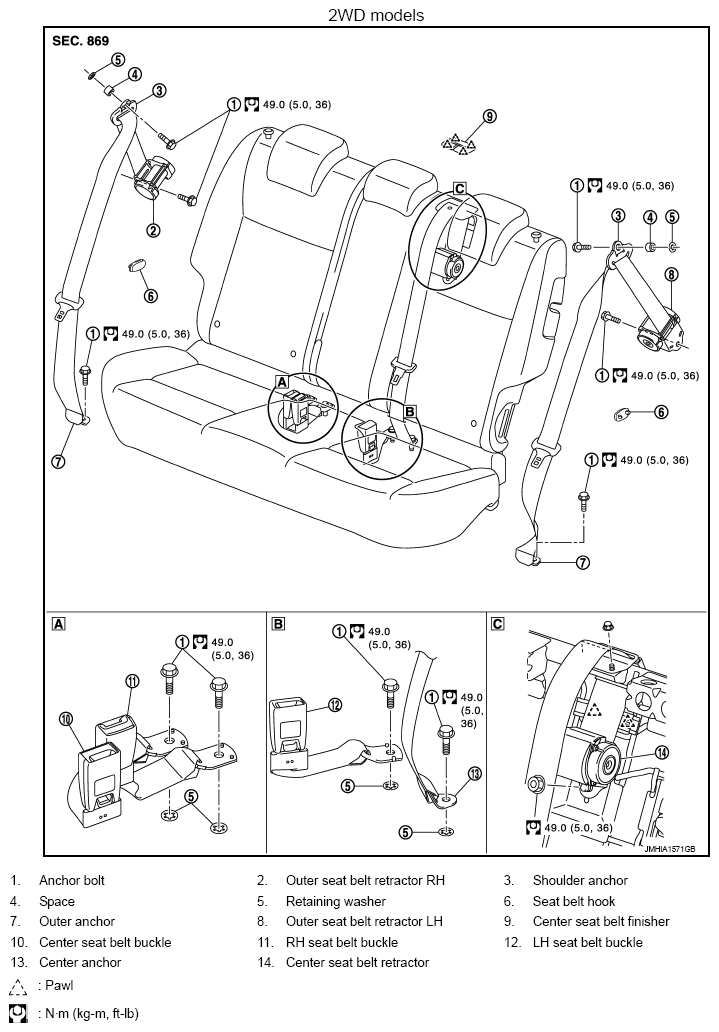

Fig 1: Exploded View Of Rear Seat Belt With Torque Specification (2WD Models)
G08098316Courtesy of NISSAN NORTH AMERICA, INC.

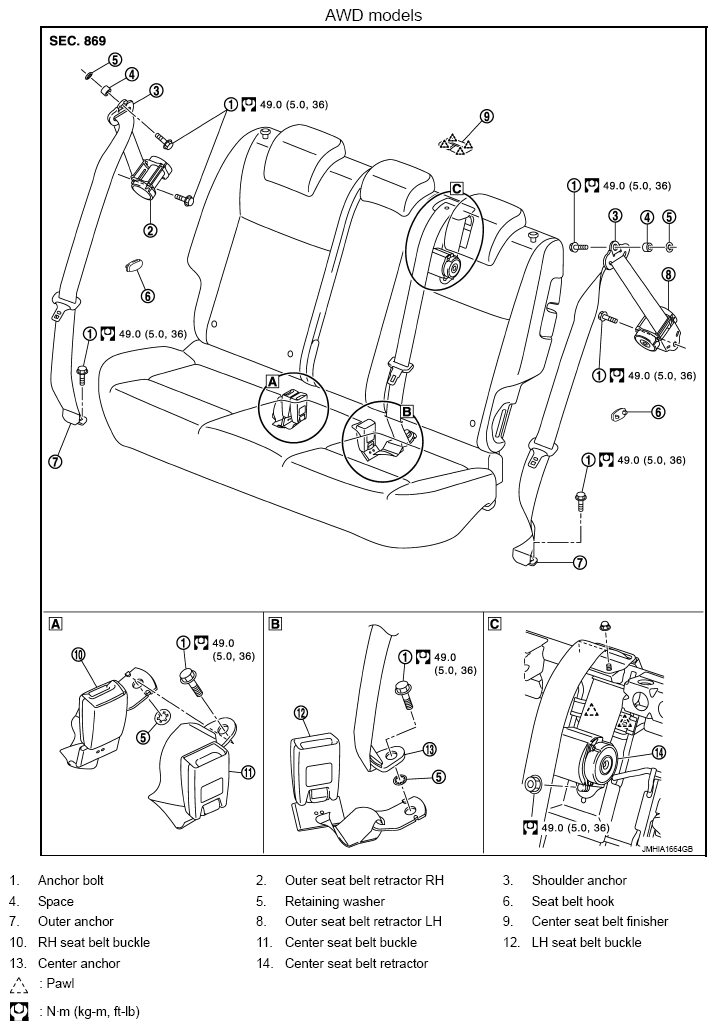

Fig 2: Exploded View Of Rear Seat Belt With Torque Specification (AWD Models)
G08098317Courtesy of NISSAN NORTH AMERICA, INC.
