Engine Compartment

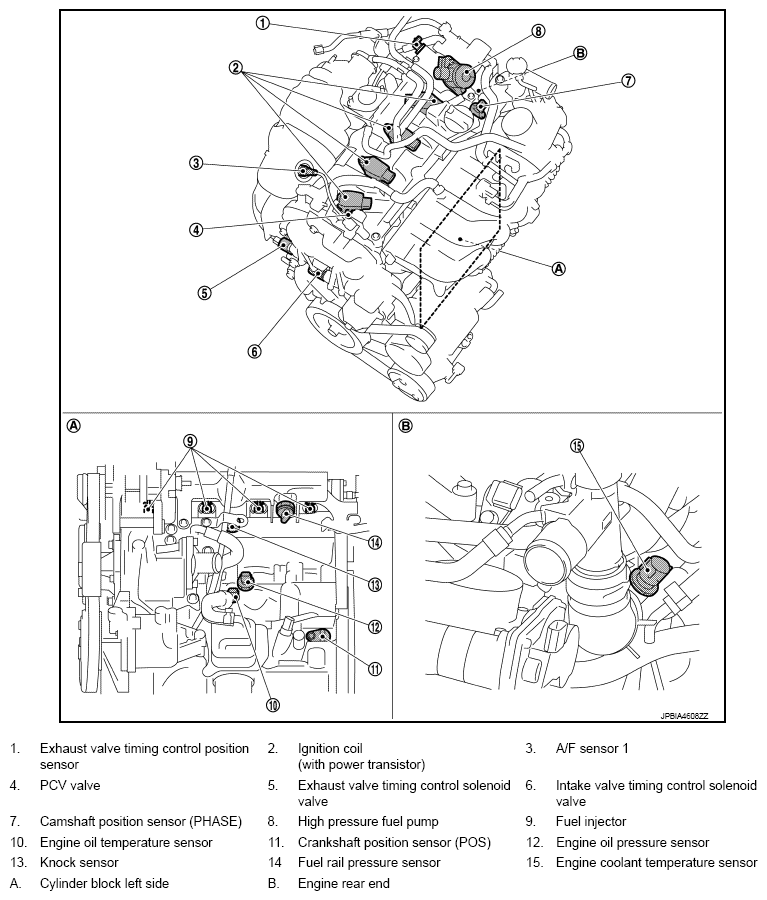

Fig 1: Identifying Engine Control System Component Location - Engine Compartment

G08096935

Courtesy of NISSAN NORTH AMERICA, INC.
