How To Erase Permanent DTC: Description: Outline
When a DTC is stored in ECM

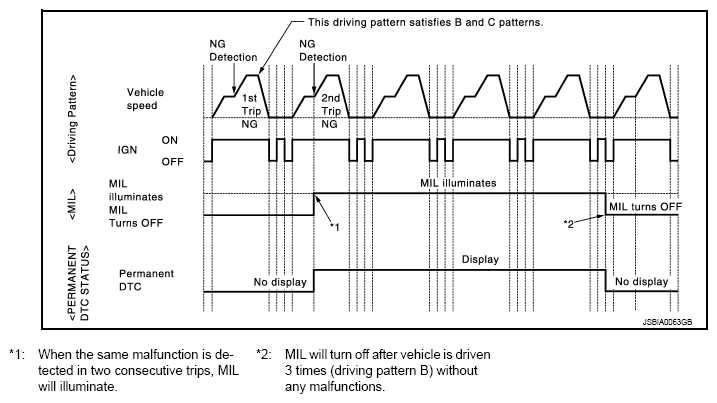

When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same malfunction is not detected after performing the driving pattern for MIL shutoff three times in a raw.
When a DTC is not stored in ECM
The erasing method depends on a permanent DTC stored in ECM. Refer to the following table .
| x: Applicable -: Not applicable | ||||||
|---|---|---|---|---|---|---|
| Group(1) | Perform "DTC CONFIRMATION PROCEDURE" for applicable DTCs. | Driving pattern | Reference | |||
| B | D | |||||
| A | x | - | - | WORK PROCEDURE (GROUP A) | ||
| B | - | x | x | WORK PROCEDURE (GROUP B) | ||
|
||||||
