AWD: Exploded View

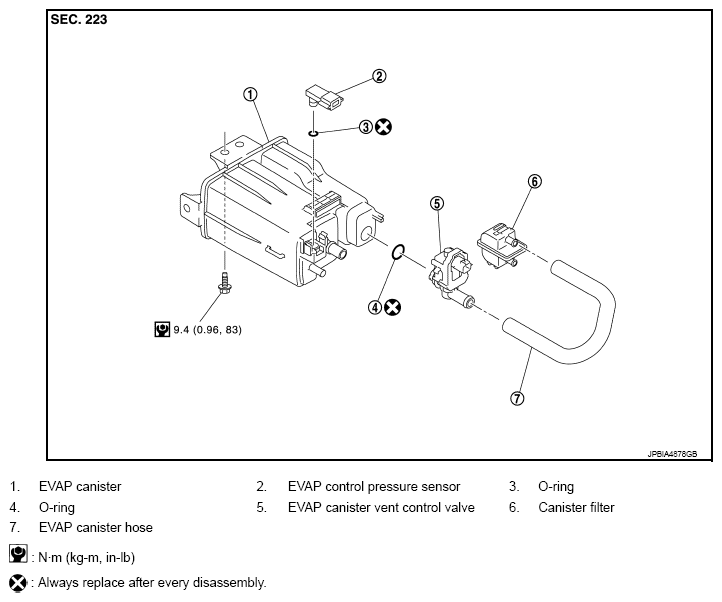

Fig 1: Exploded View Of EVAP Canister (AWD)

G08097240

Courtesy of NISSAN NORTH AMERICA, INC.
