2WD: Exploded View

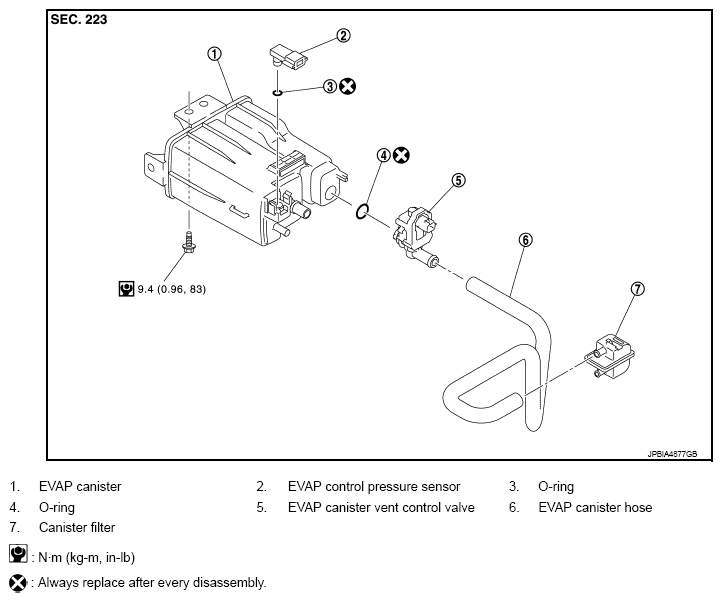

Fig 1: Exploded View Of EVAP Canister (2WD)

G08097236

Courtesy of NISSAN NORTH AMERICA, INC.
