Power Window System: Wiring Diagram

For connector terminal arrangements, harness layouts, and alphabets in a (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

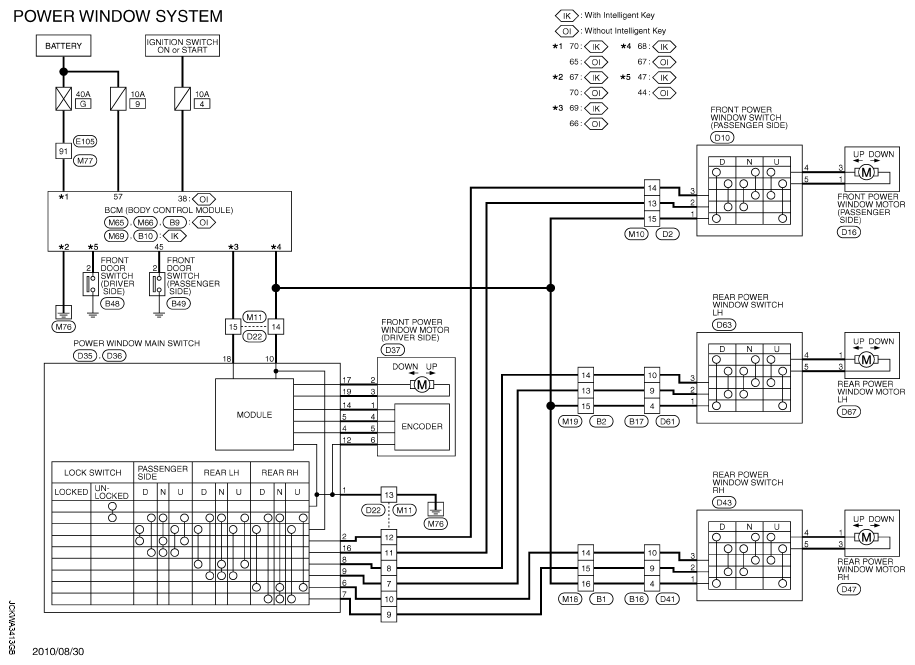

Fig 1: Power Window System - Wiring Diagram

Courtesy of NISSAN NORTH AMERICA, INC.
