Removal and Installation: Removal

  1. Remove the NATS antenna amp. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the push-button ignition switch.
    1. Disengage the push-button ignition switch (1) fixing pawls using remover tool.
    2. Press the push-button ignition switch to remove it from cluster lid A (2).

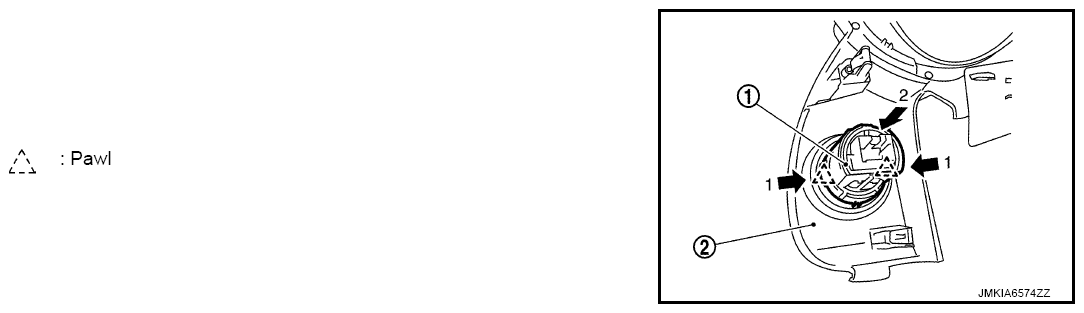

      Fig 1: Removing Push-Button Ignition Switch
      G08098946Courtesy of NISSAN NORTH AMERICA, INC.
